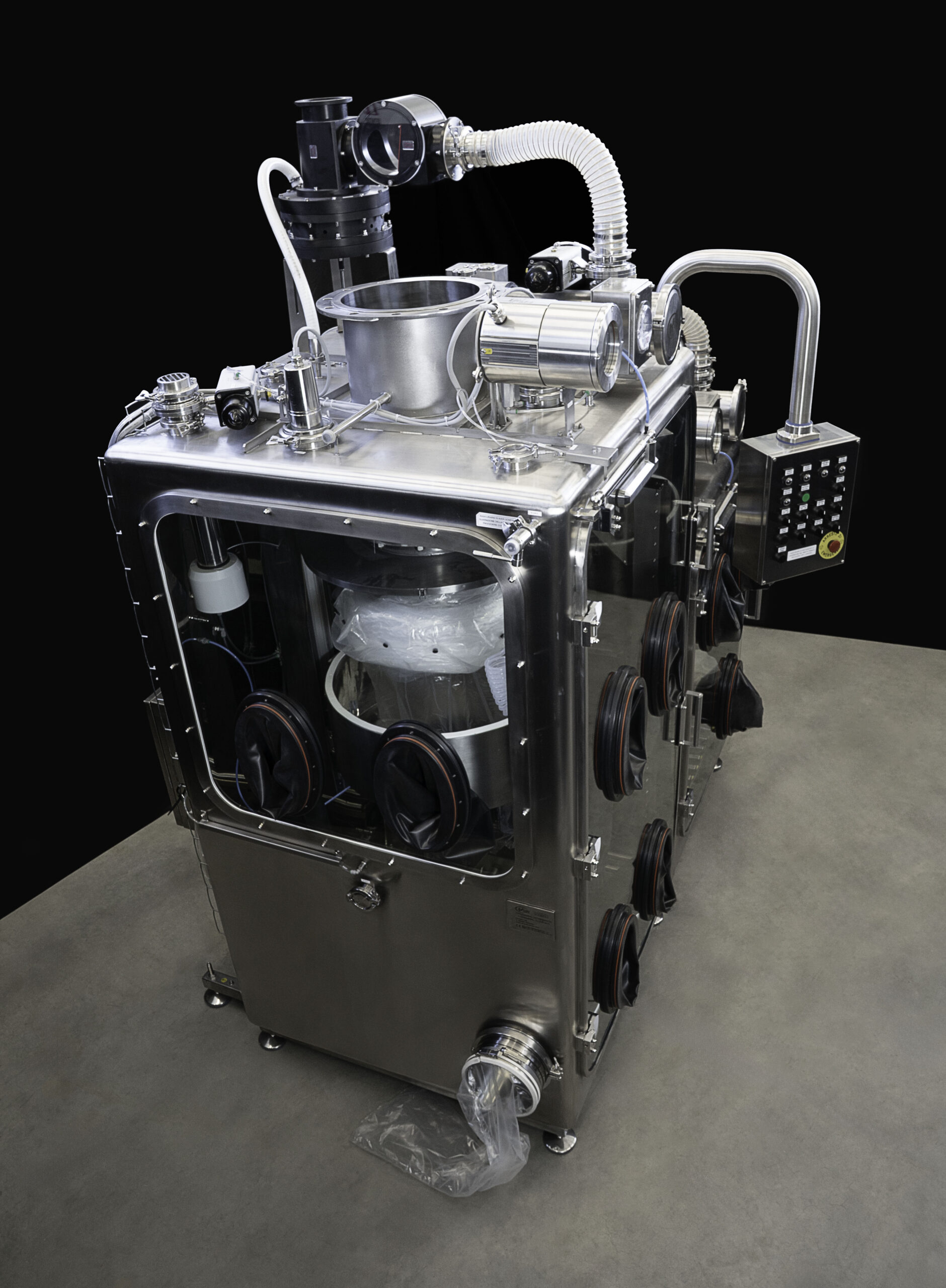

A fully segregated drum handling system based on the Dynamic Isolation Barrier concept.
In high-containment applications, the Dynamic Isolation Barrier by CSV Containment ensures complete process separation through safe and controlled chamber segregation.

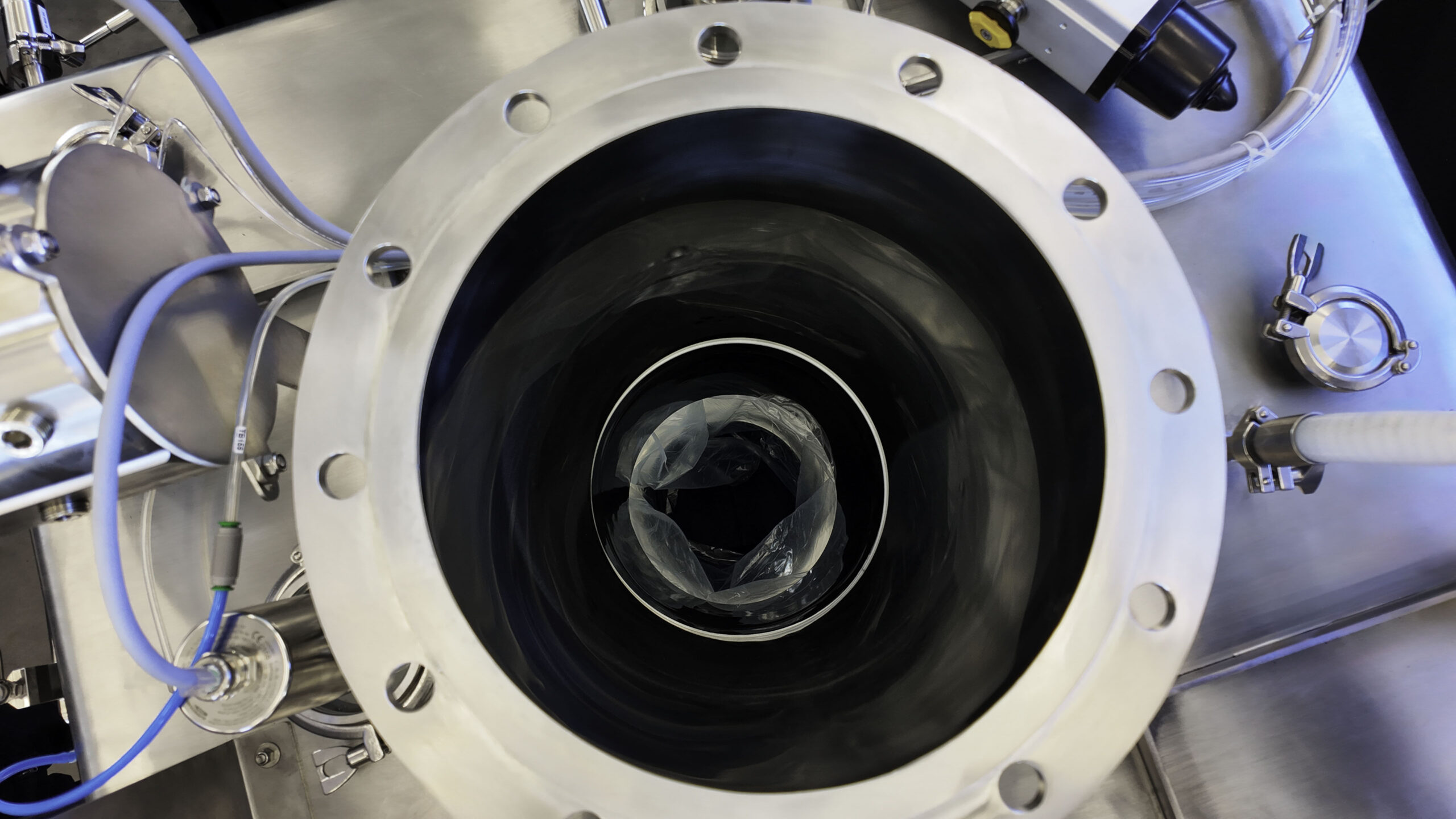

This system has been developed to manage drum handling operations within a fully contained environment, minimizing any risk of exposure. The process begins with the drum entering a dedicated loading chamber via a roller conveyor, where it remains isolated from the main chamber. From here, the transfer continues through roller systems and a pneumatic guillotine door, ensuring that containment is never compromised.

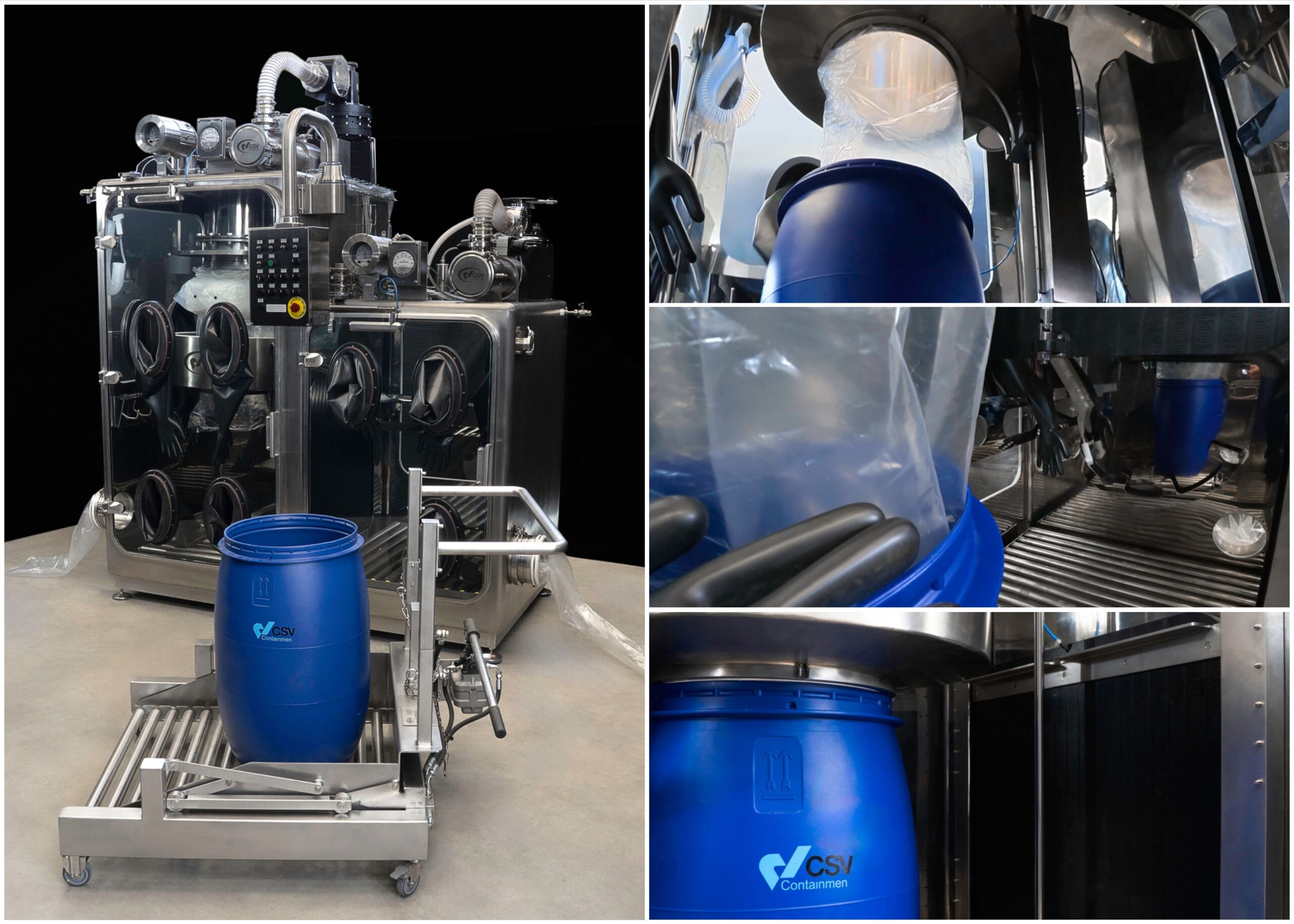

Dual-Chamber Configuration for Total Process Segregation.

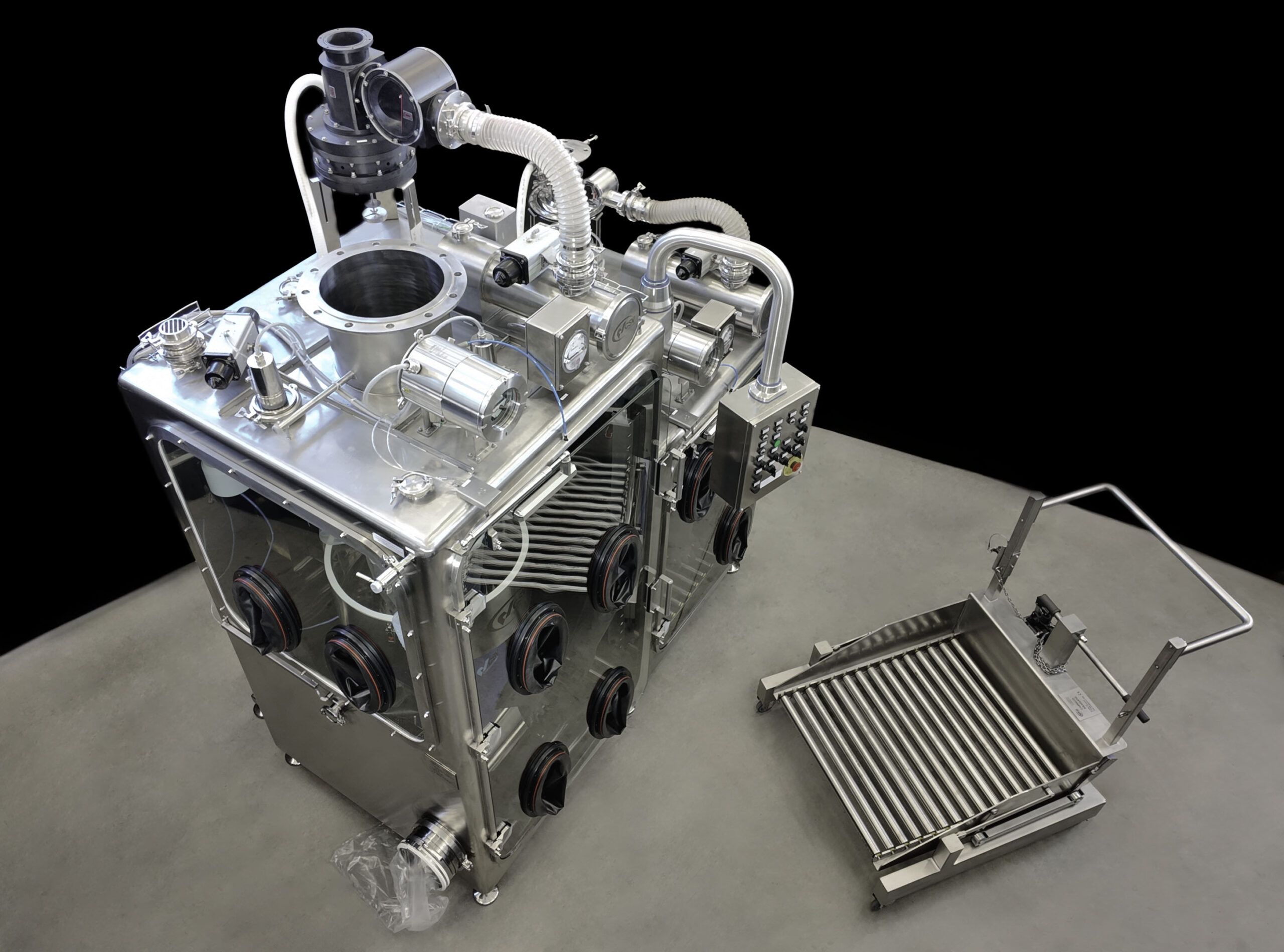

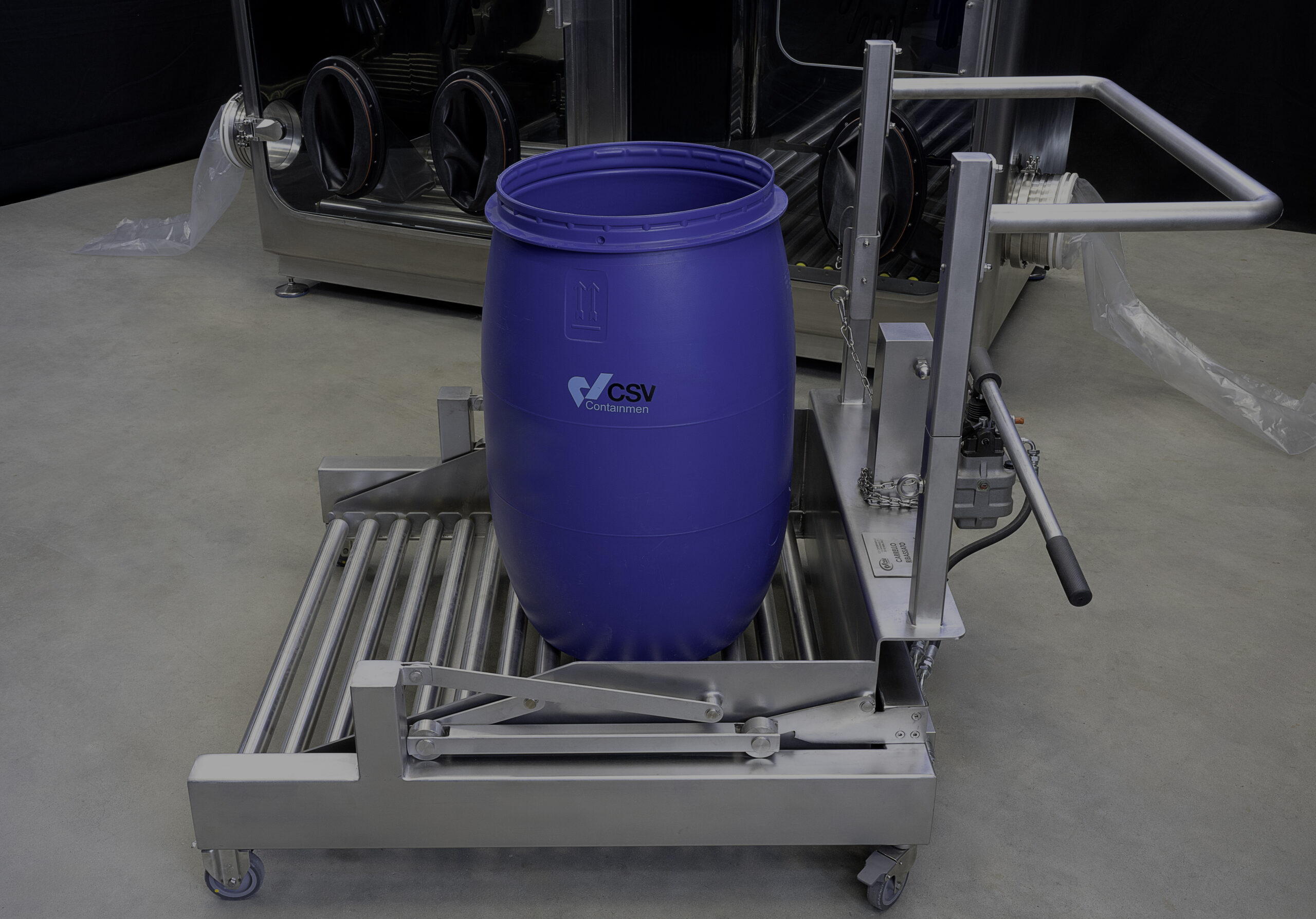

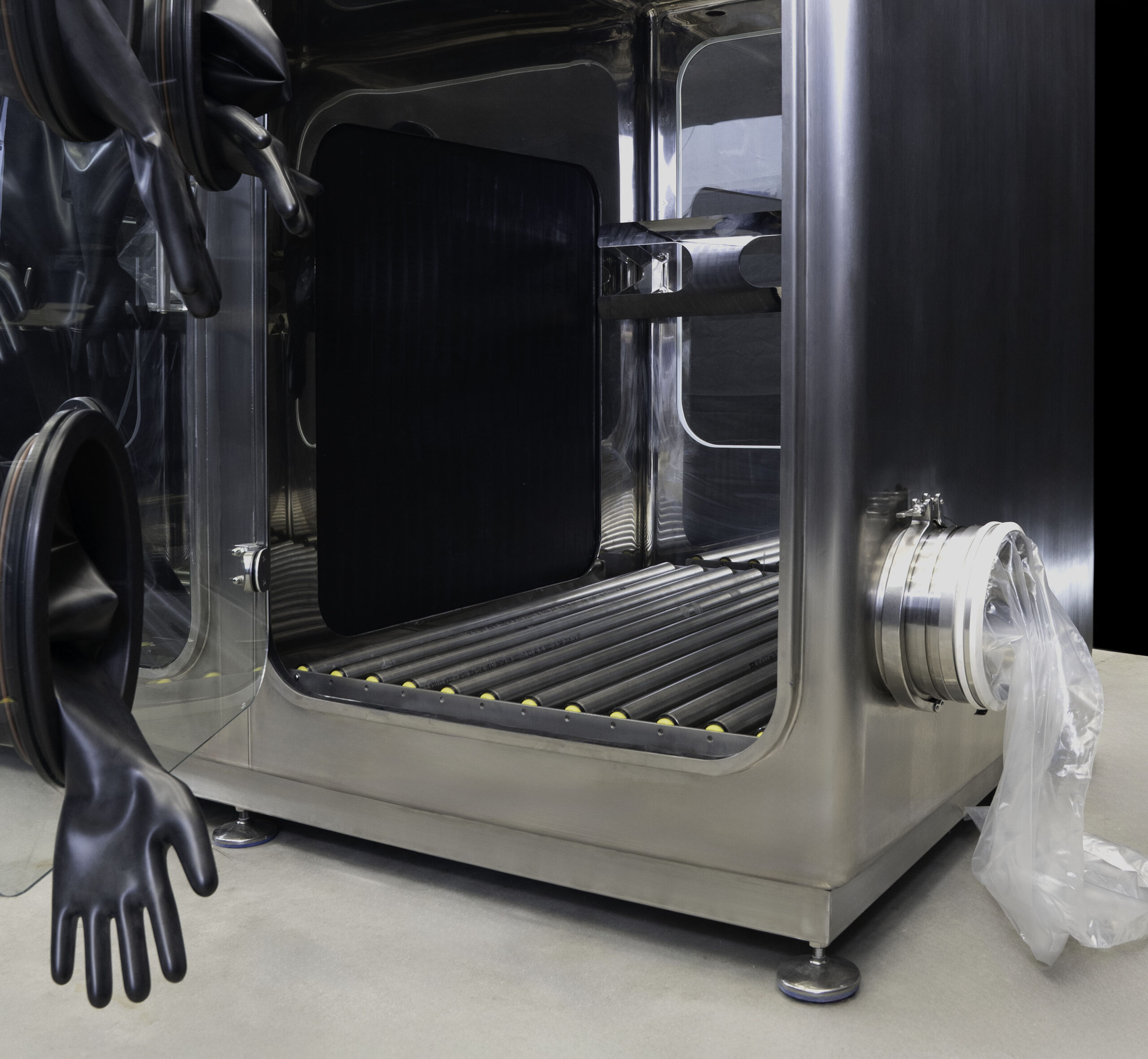

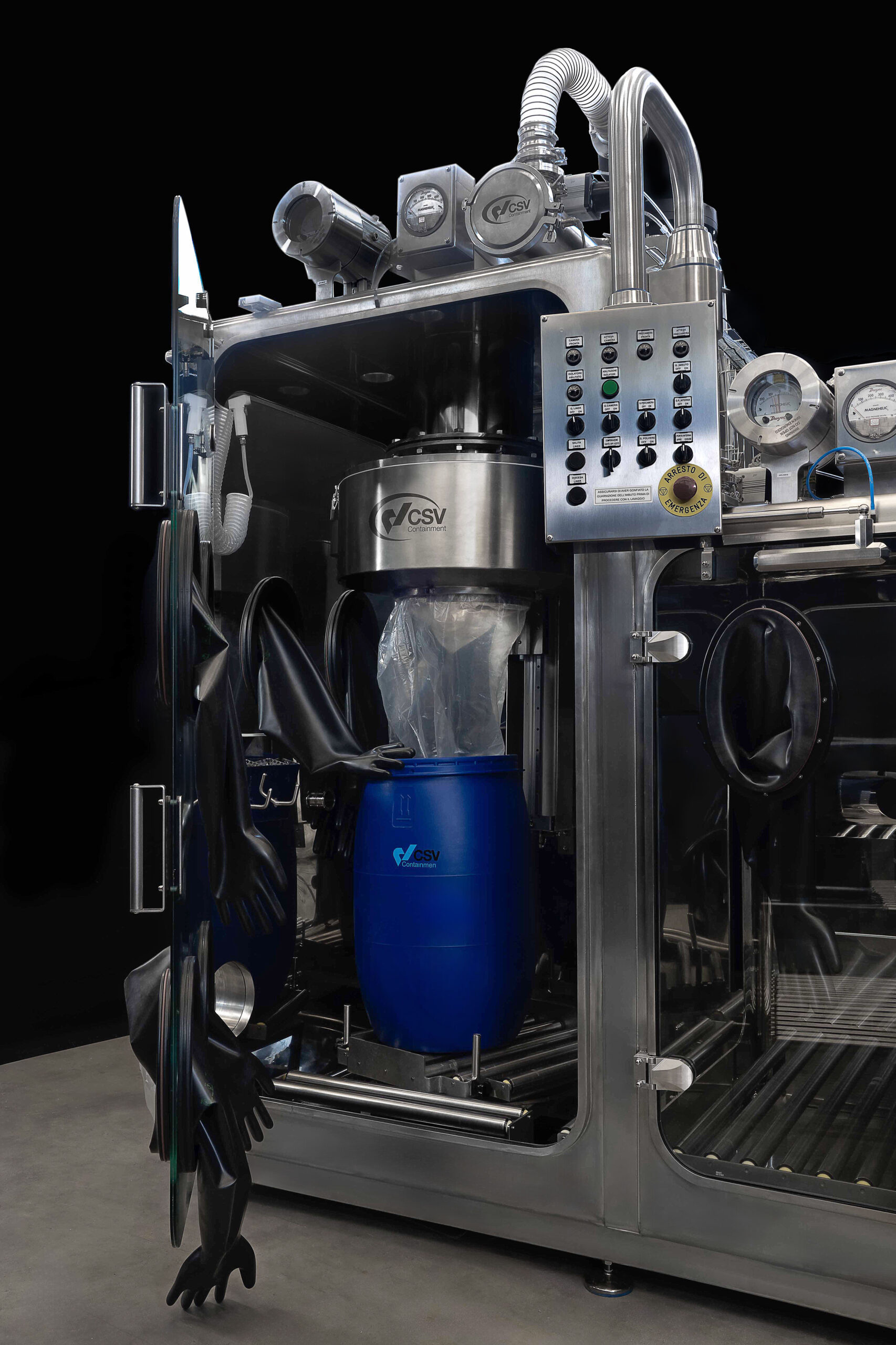

The system features a dual-chamber configuration designed to clearly separate the loading and processing phases. The right-side chamber acts as a pre-entry area, where the drum is introduced using a dedicated trolley, also equipped with a roller system to facilitate handling operations.

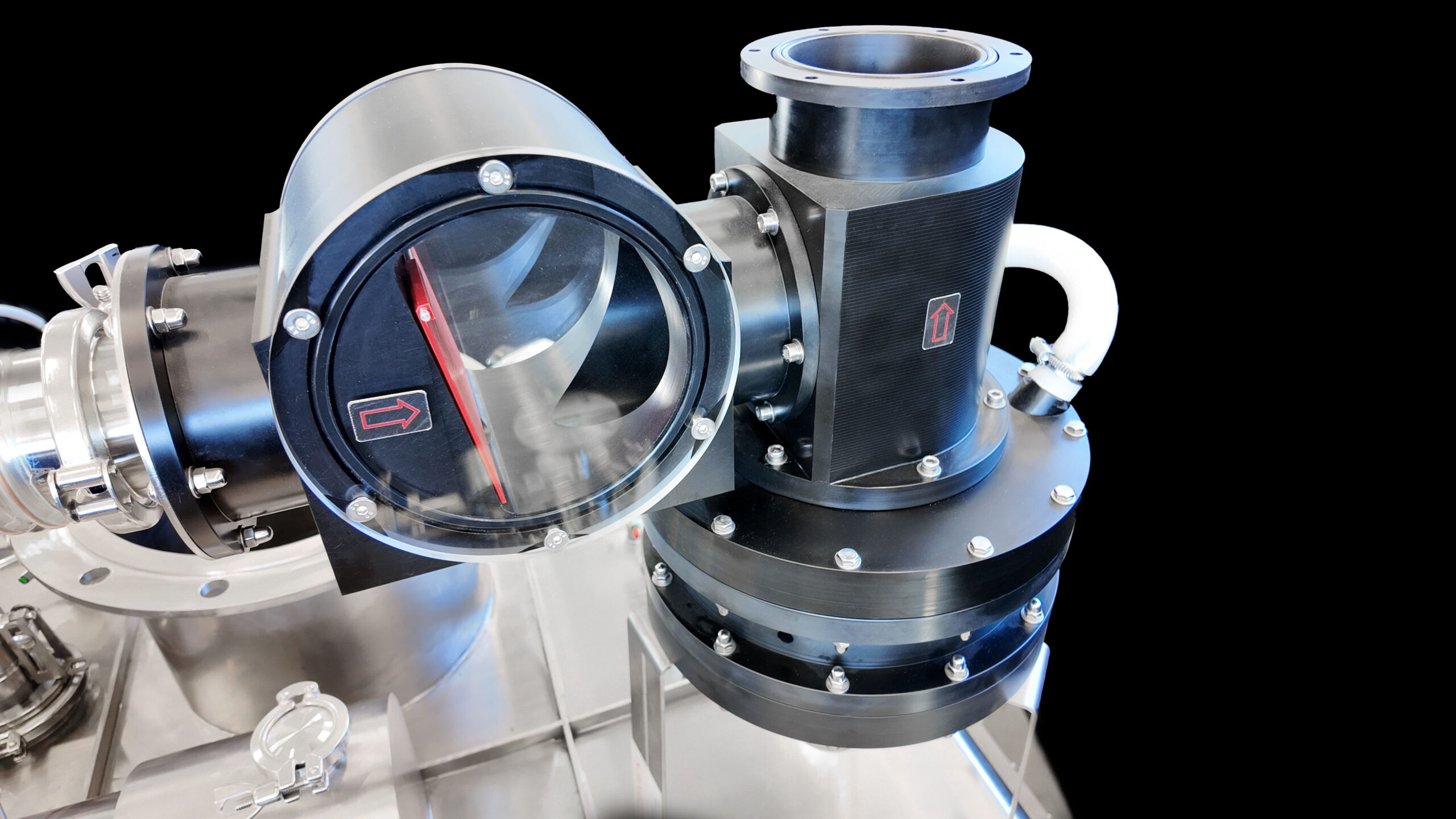

This allows operators to position the material safely, with minimal effort and without any direct interaction with the main chamber environment. Once inside the pre-chamber, the drum is ready for transfer. A physical separation between the two chambers, ensured by the pneumatic barrier, guarantees that each process phase remains isolated, significantly reducing the risk of cross-contamination. The system is equipped with safety valves to ensure automatic pressure balancing during drum chamber transfer and drum handling.

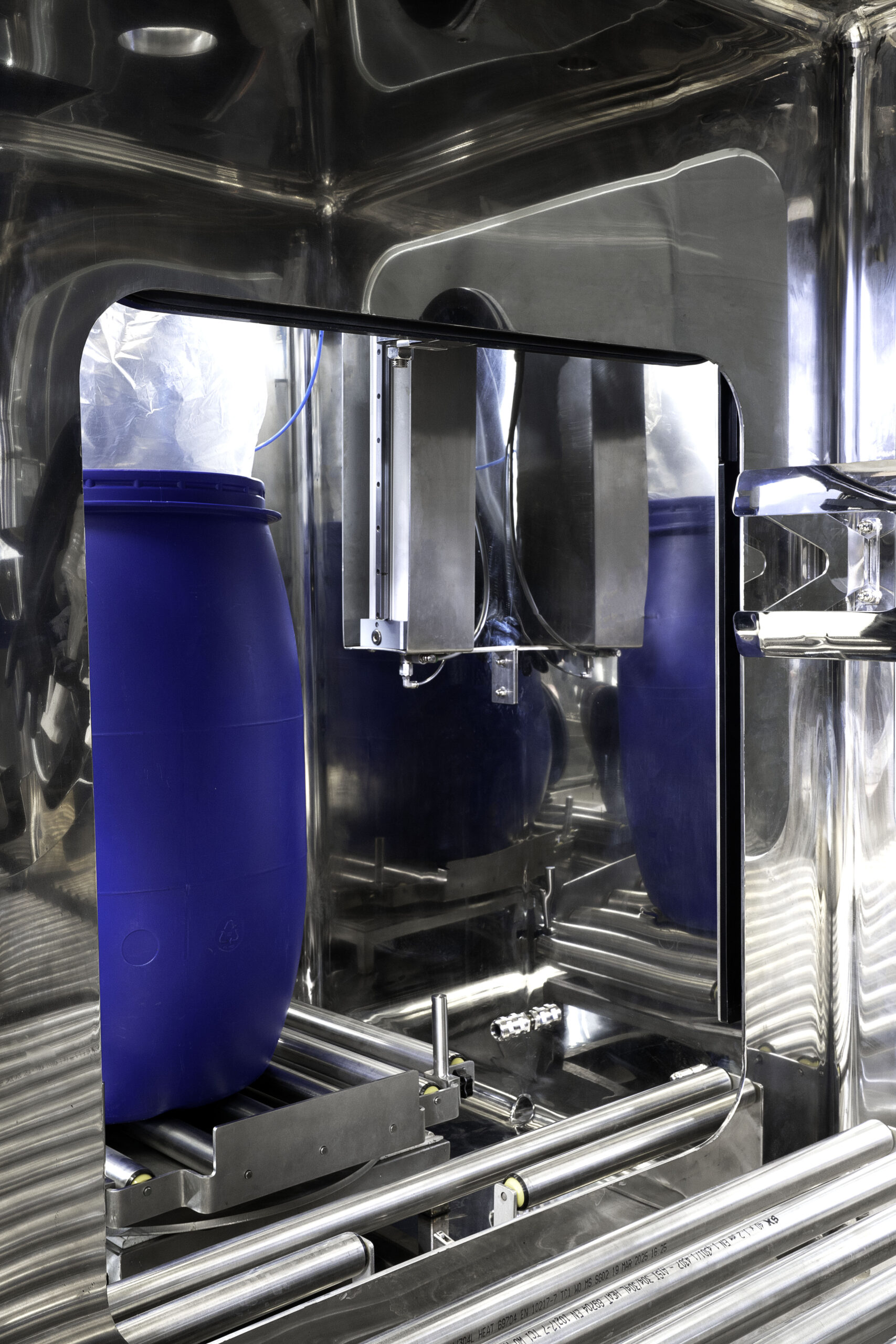

Dynamic Isolation Barrier: Active Separation Between Chambers.

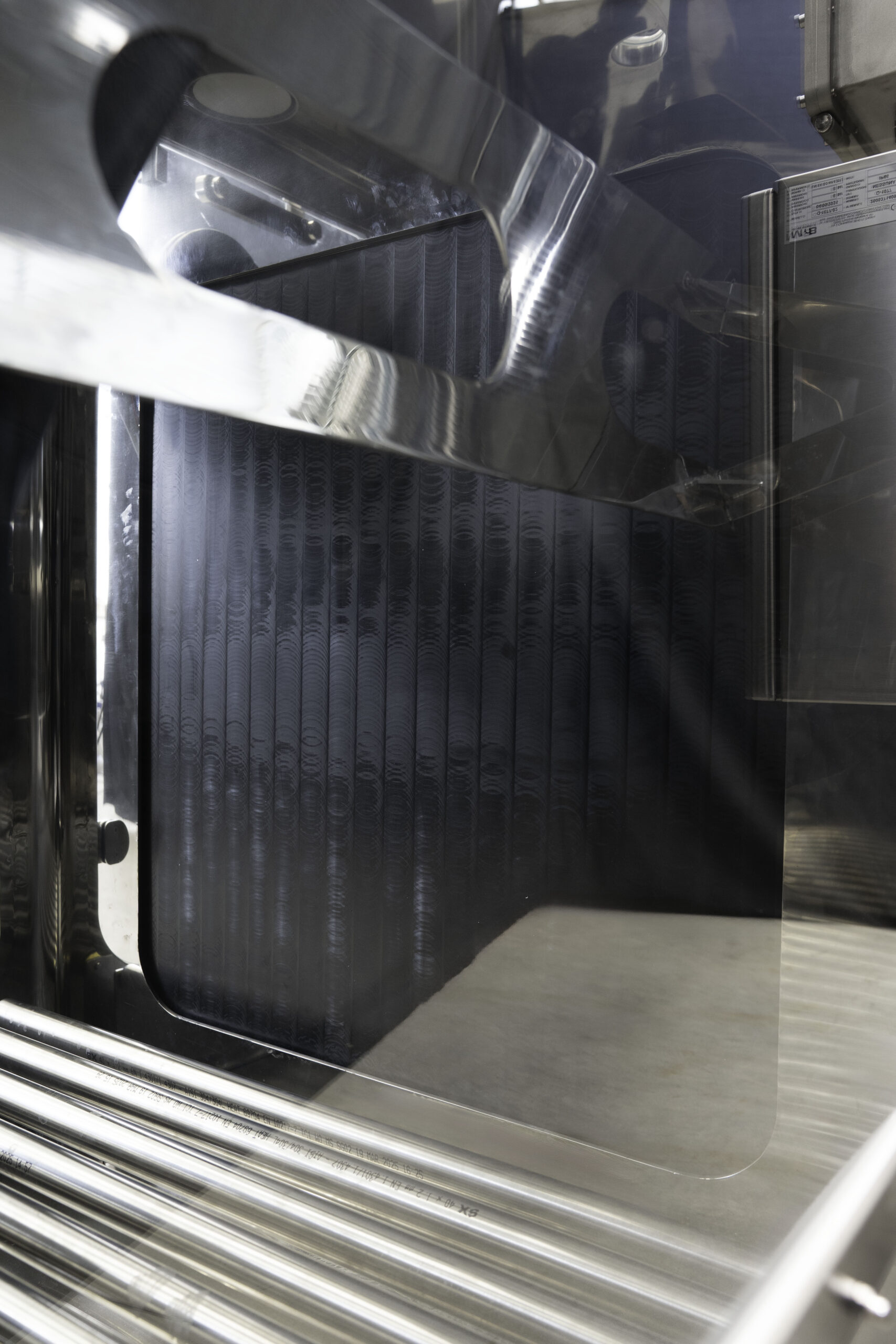

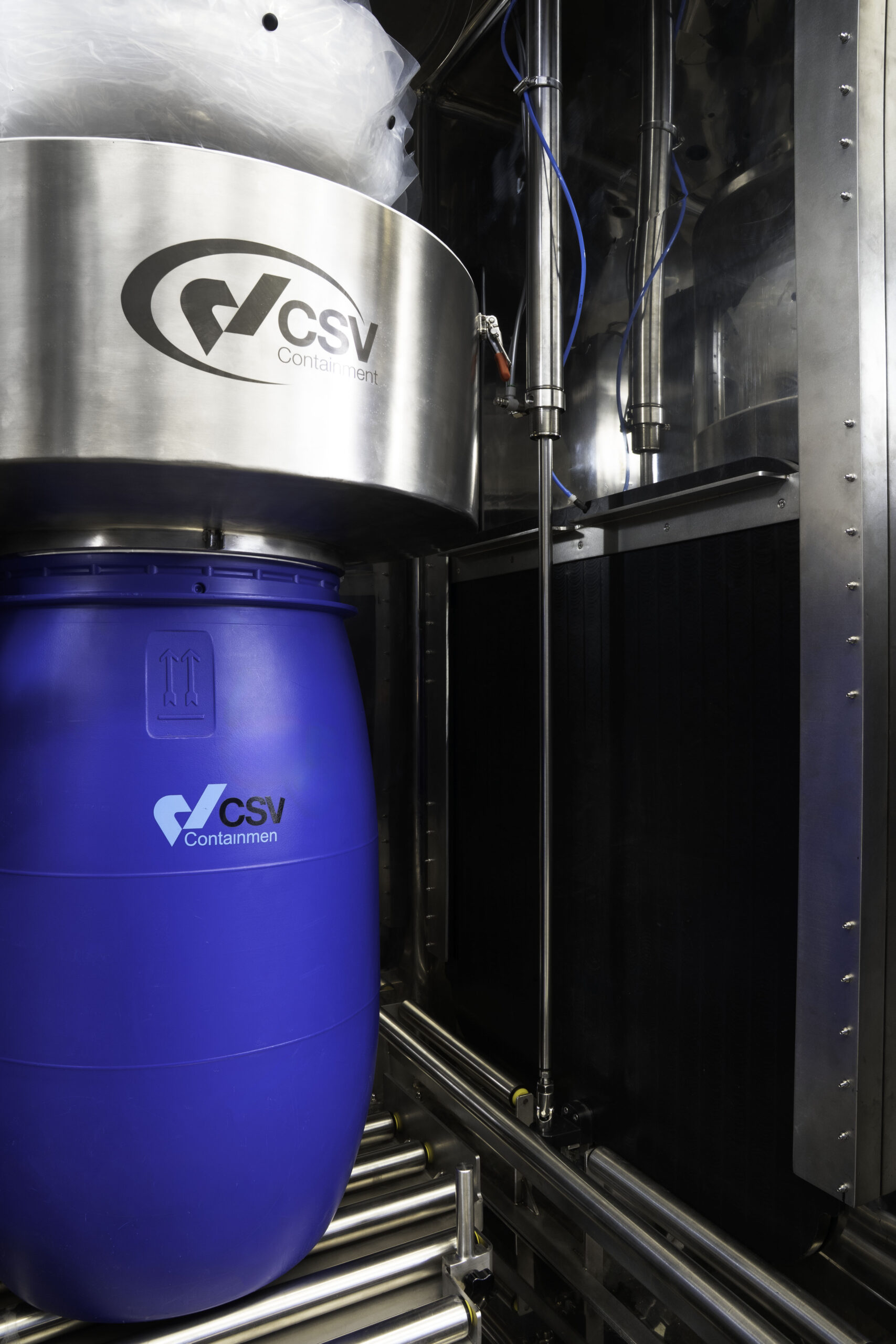

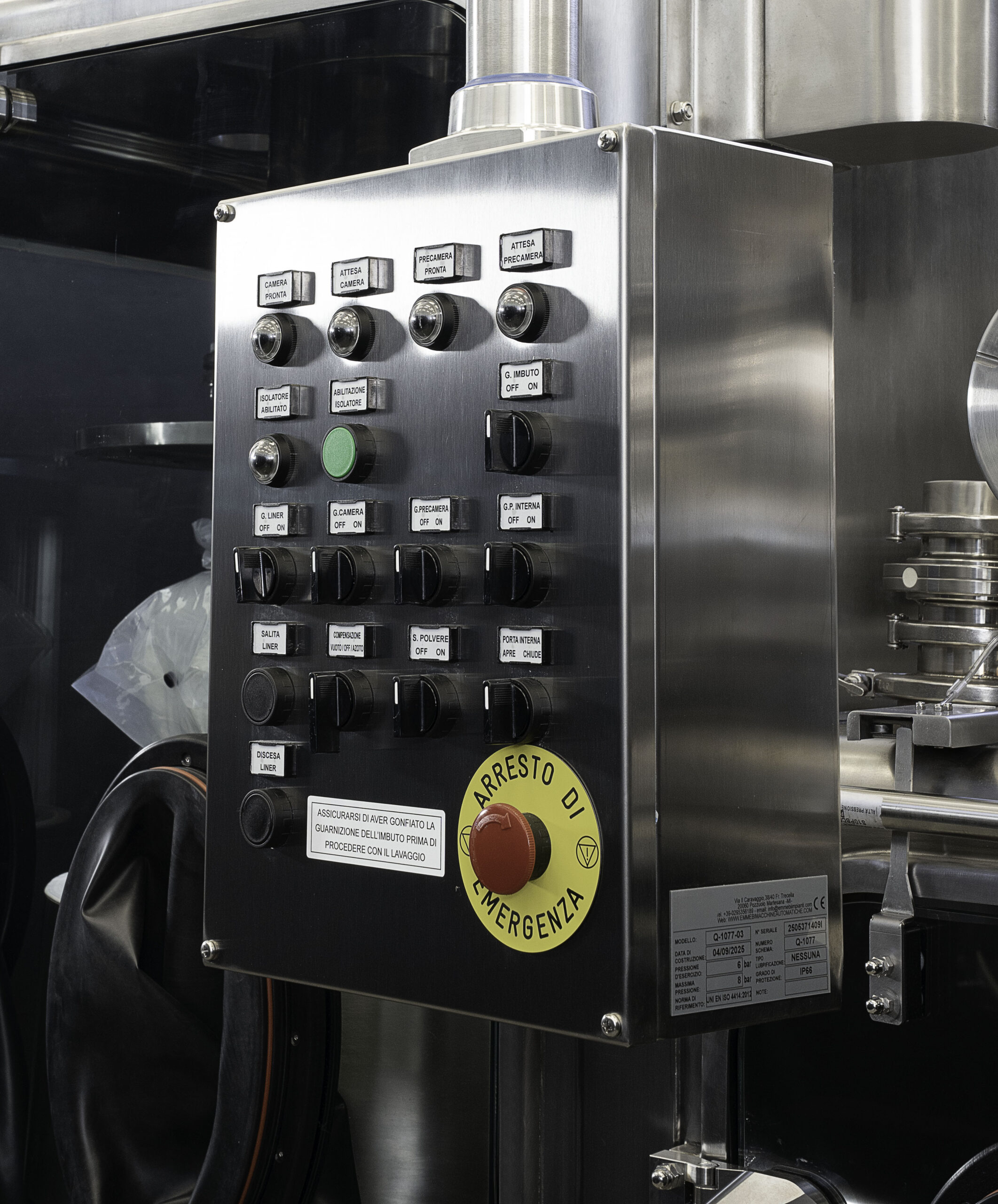

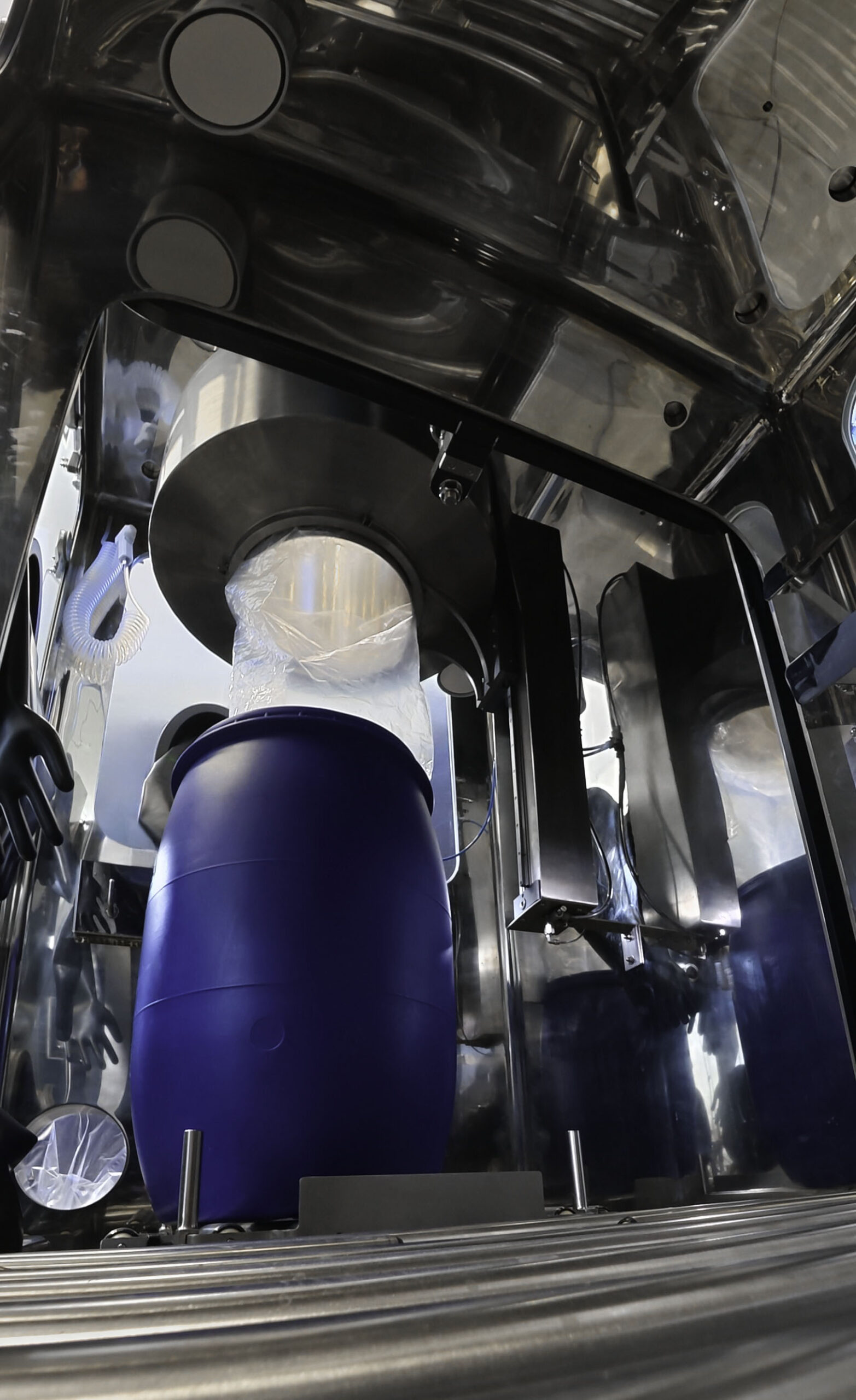

The transition between the two chambers is managed by the Dynamic Isolation Barrier, a pneumatic guillotine system that represents an innovative solution in the field of containment. Through the external control panel, every phase of the process can be precisely managed.

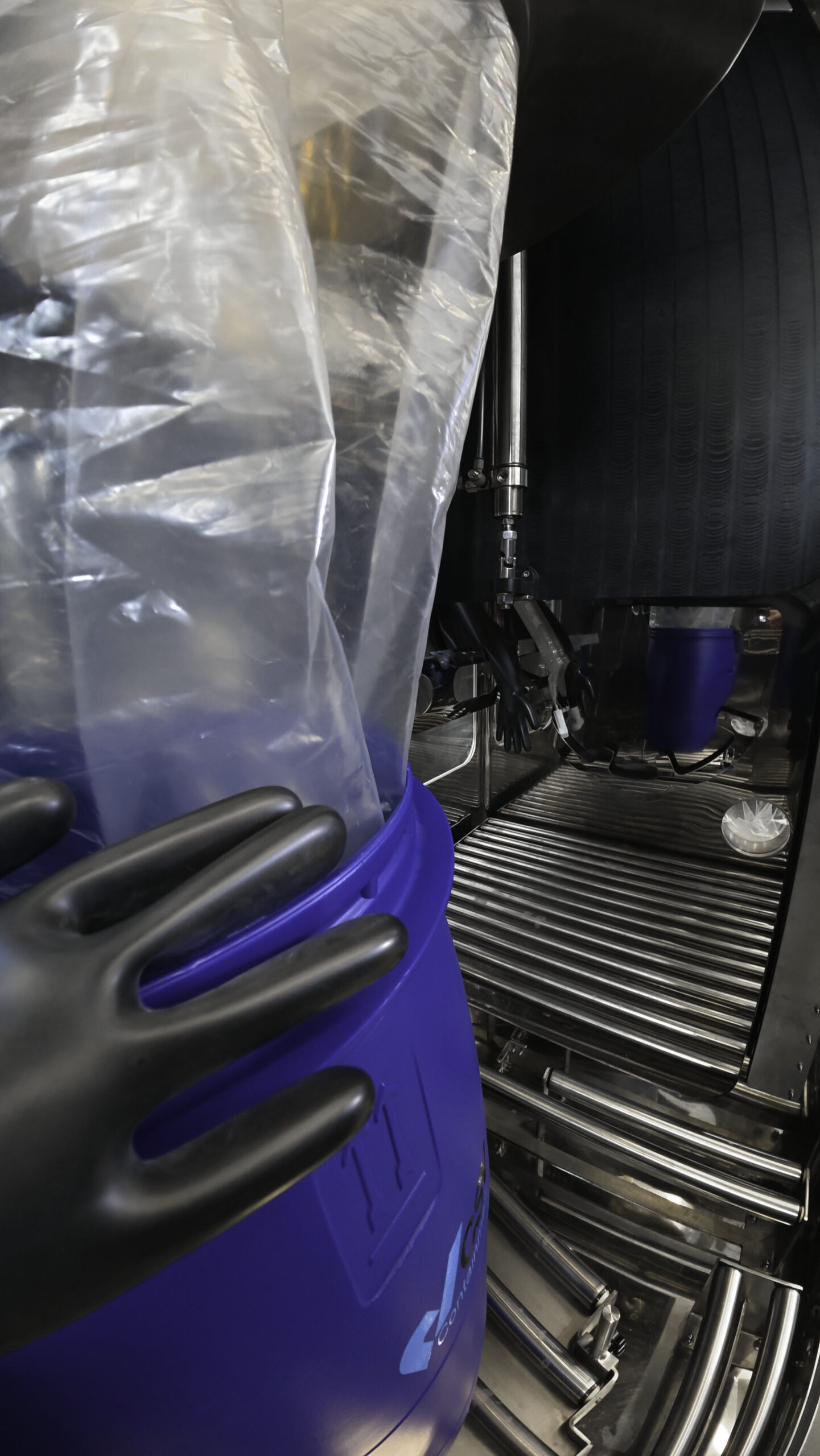

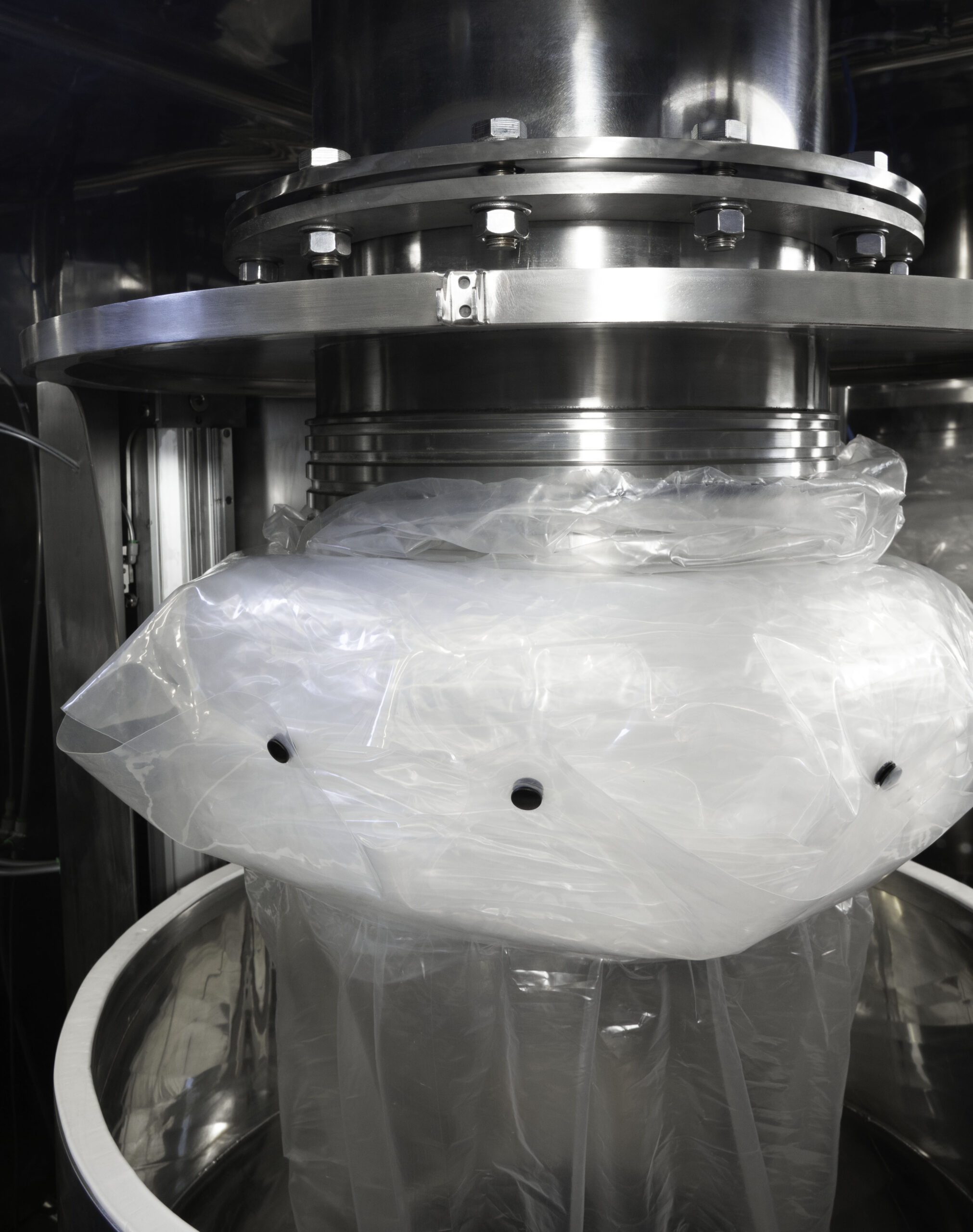

When the barrier is closed, it provides an additional level of protection, complementing both the isolator and the continuous liner discharge system installed within it. In this way, a third level of containment is created, enhancing operator protection and product integrity.
The result is a highly reliable transfer process, where every step is physically controlled, eliminating the risk of unintended exposure.
Integrated Roller System for Controlled Drum Handling.
To improve safety and ergonomics, the system integrates a continuous roller conveyor connecting the external trolley, the pre-chamber, and the main chamber. This ensures smooth and controlled drum movement throughout the entire process.

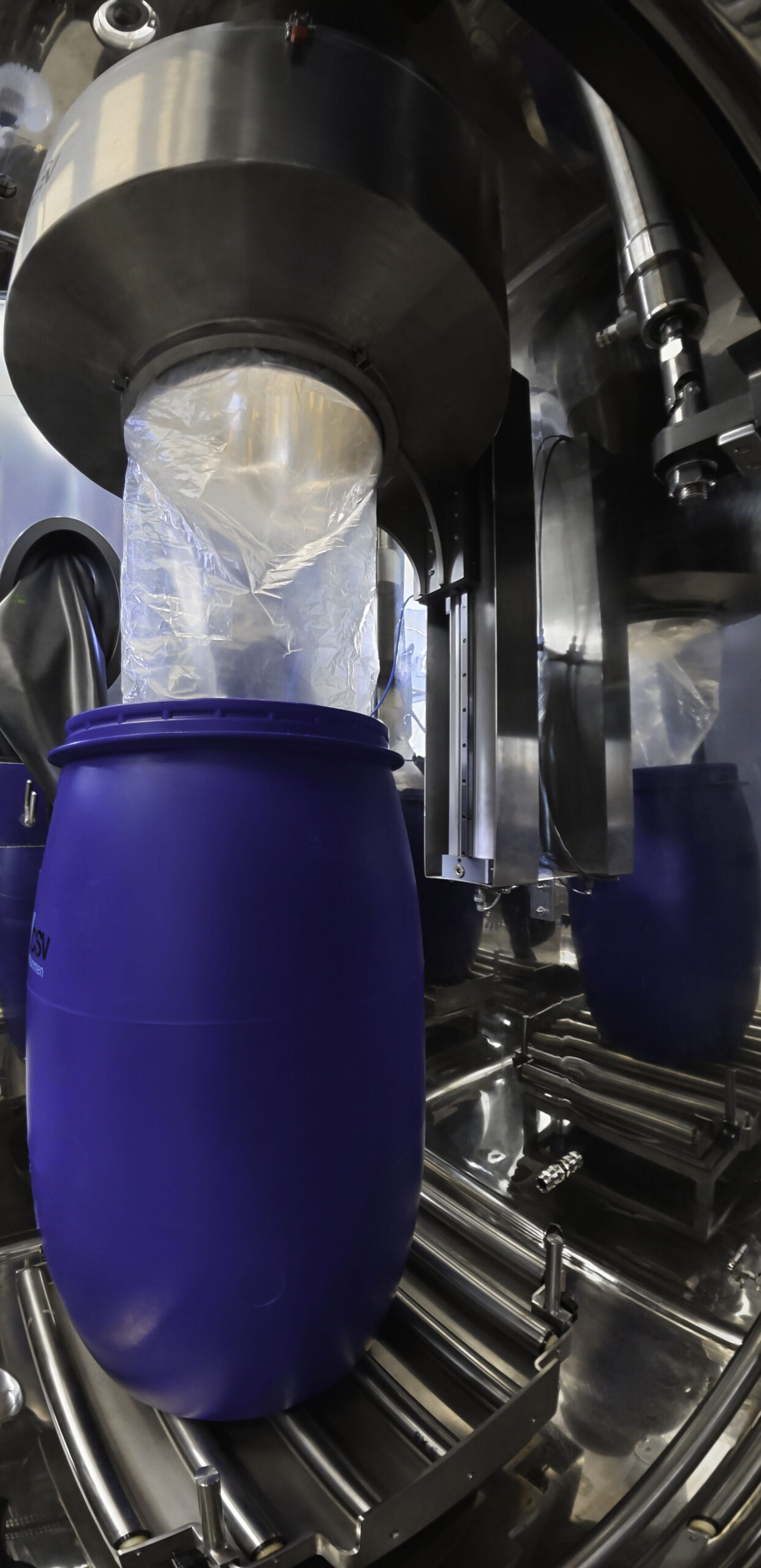

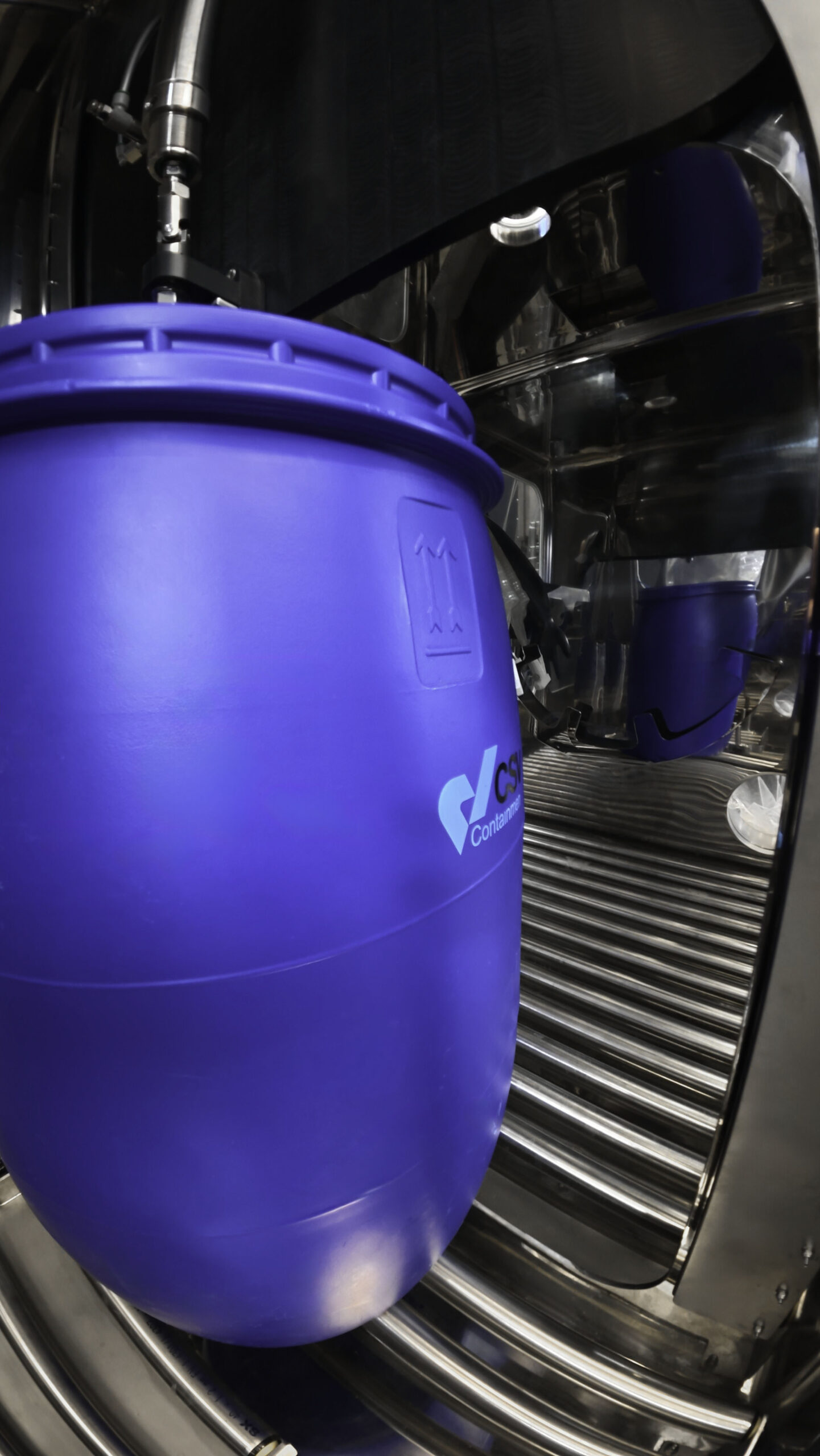

Inside the main chamber, the roller system is designed to rotate, allowing precise drum positioning during discharge operations. This feature improves usability, making movements within the main chamber more efficient.

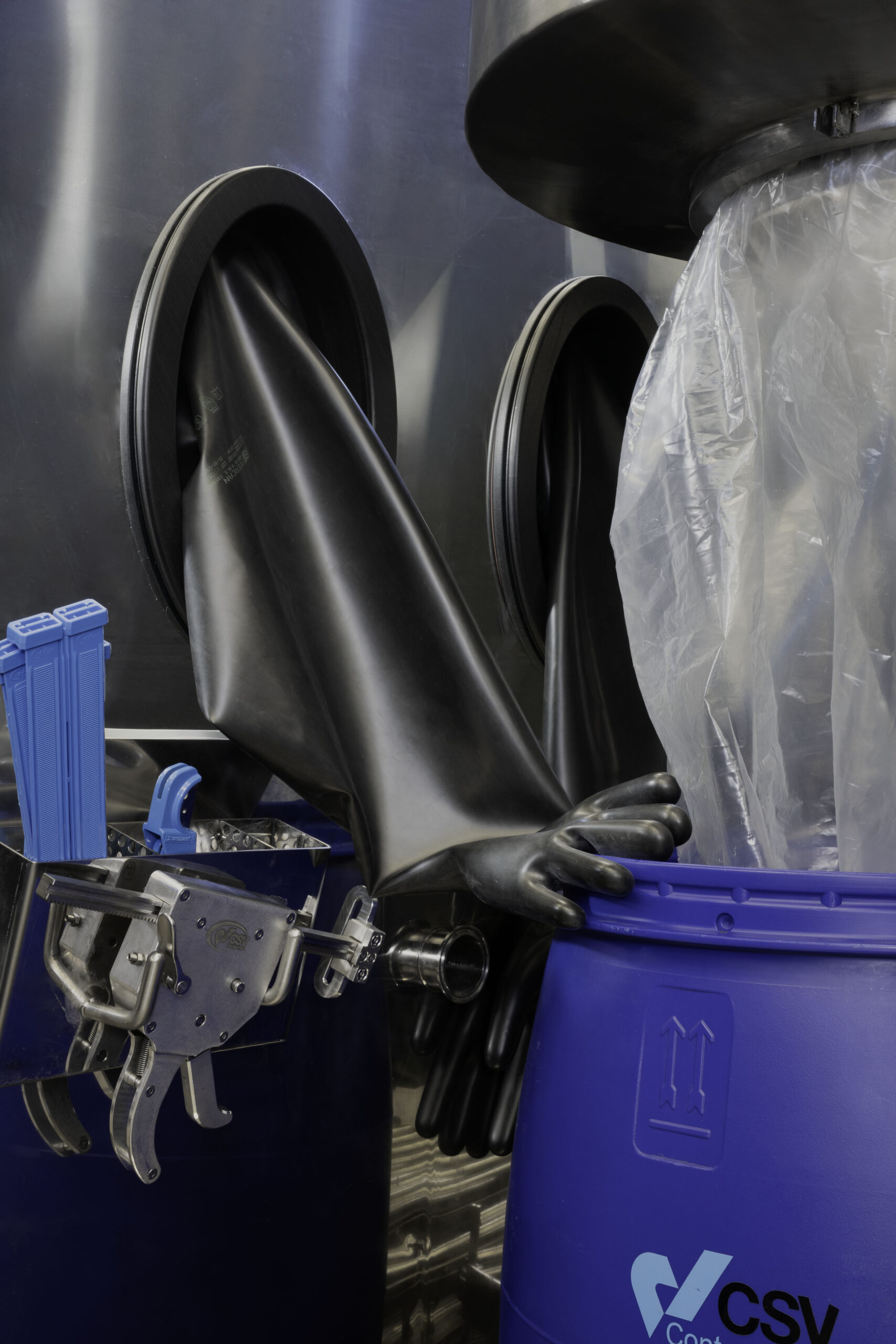

The continuity of the system eliminates the need for difficult manual handling, reducing operator effort. In terms of accessories, the chamber can also accommodate, thanks to dedicated spaces, a manual or pneumatic tensioning tool along with the corresponding Twin Tie® straps.
Washing Cone for Post-Process Decontamination.

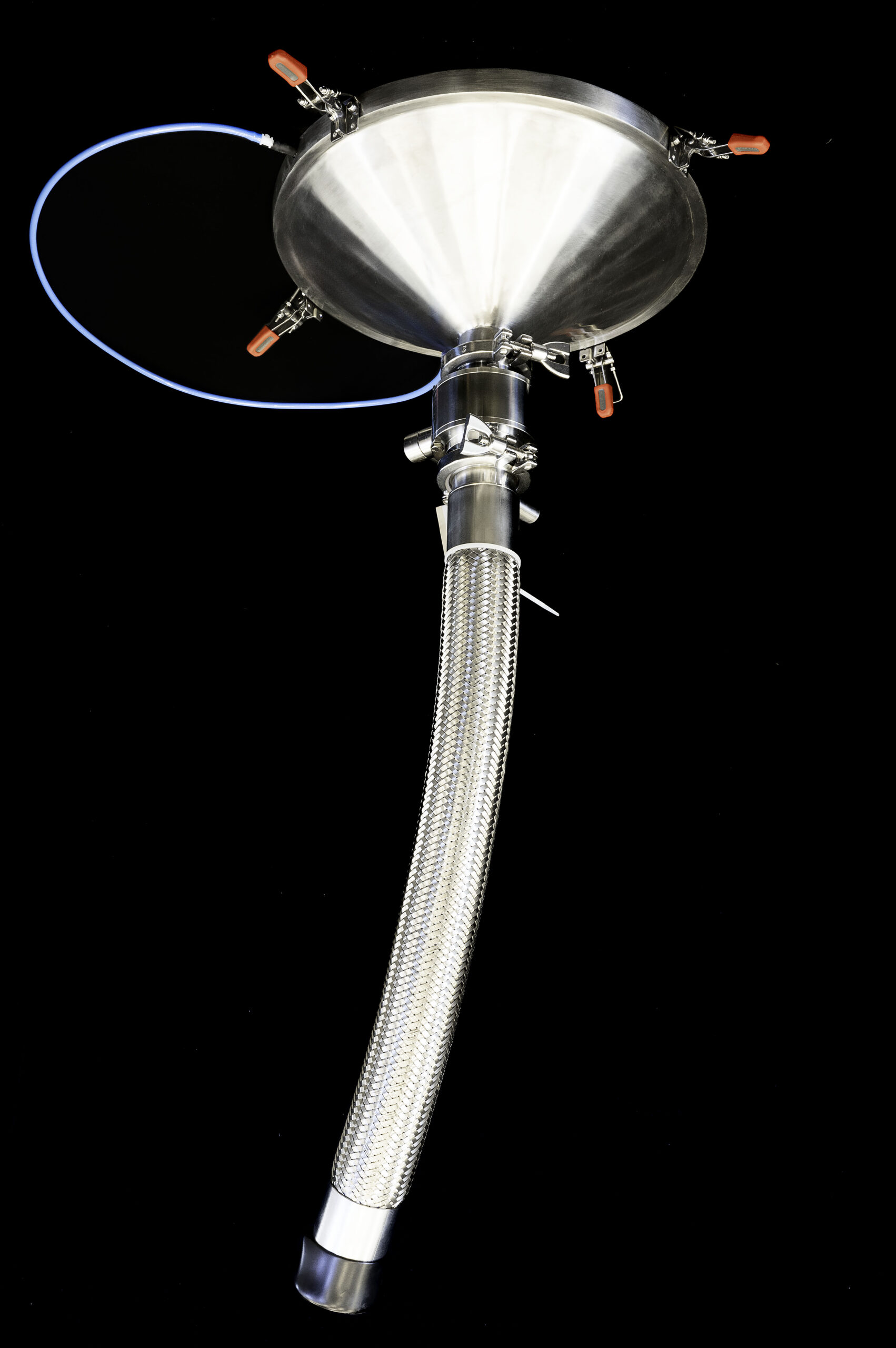

At the end of the operation, the system can be equipped with a dedicated washing cone, designed to safely perform cleaning procedures. This accessory can be easily installed to carry out internal decontamination after discharge.
The washing cone allows any residual material to be managed while preserving the integrity of the system and preparing it for subsequent cycles. This feature further reinforces the concept of a fully contained process, from material entry through to final cleaning.
