Fluid powder transfer system

Fluid Powder Transfer is one of the most common operation in pharmaceutical industries, and Hydro Powder System is a unique solution.

Introducing Multifunctional Equipment for Fluid Powder Transfer, born from the skillful blend of expertise of Pharma Hub, Officine Galesso and CSV Containment. Operating on the Venturi principle, it uses liquid as motor fluid, to perform and facilitate the powder transfer.

The process of powder intake is a seamless interplay of vacuum and motor fluid, ensuring the powder is smoothly dissolved into the circulation liquid.

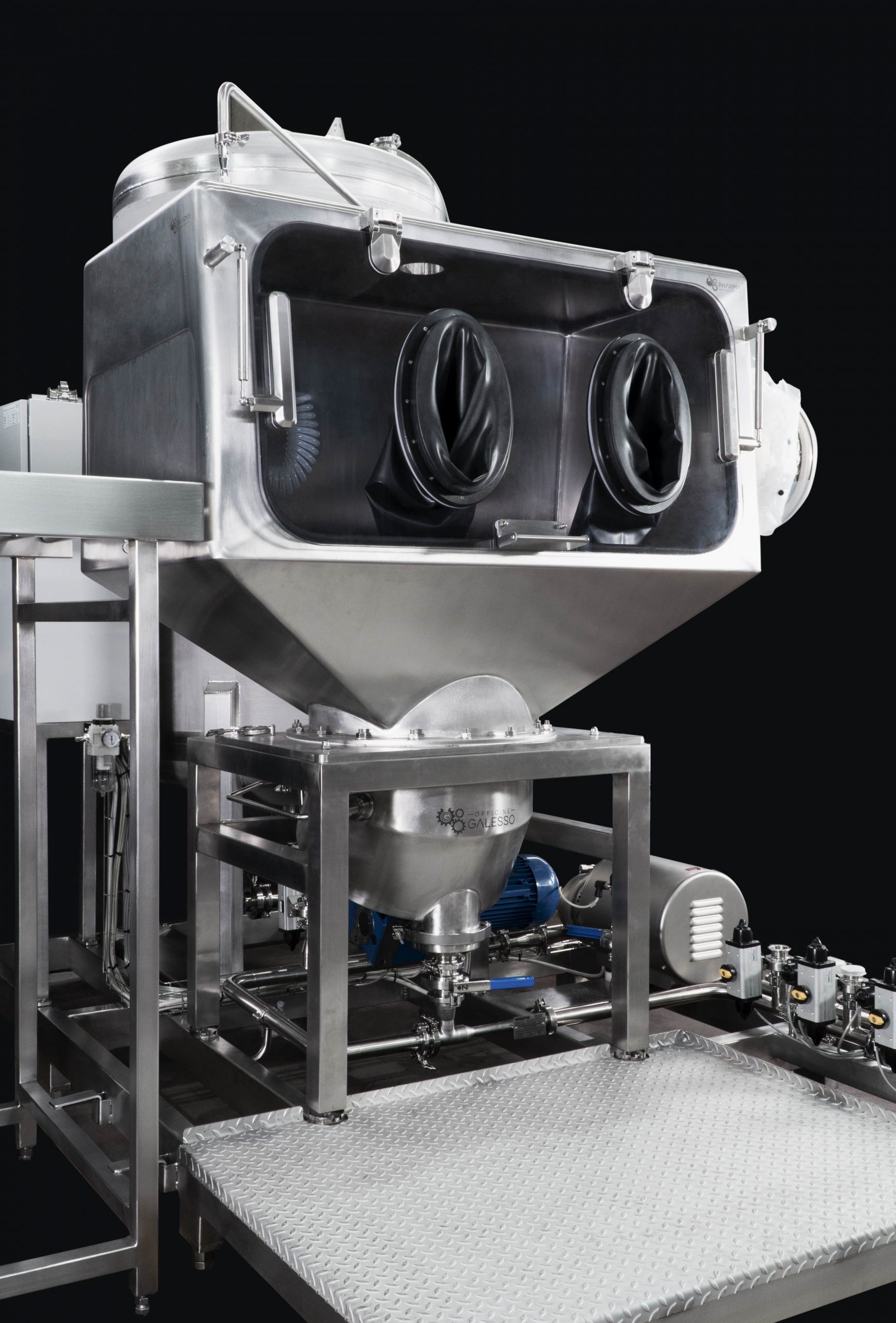

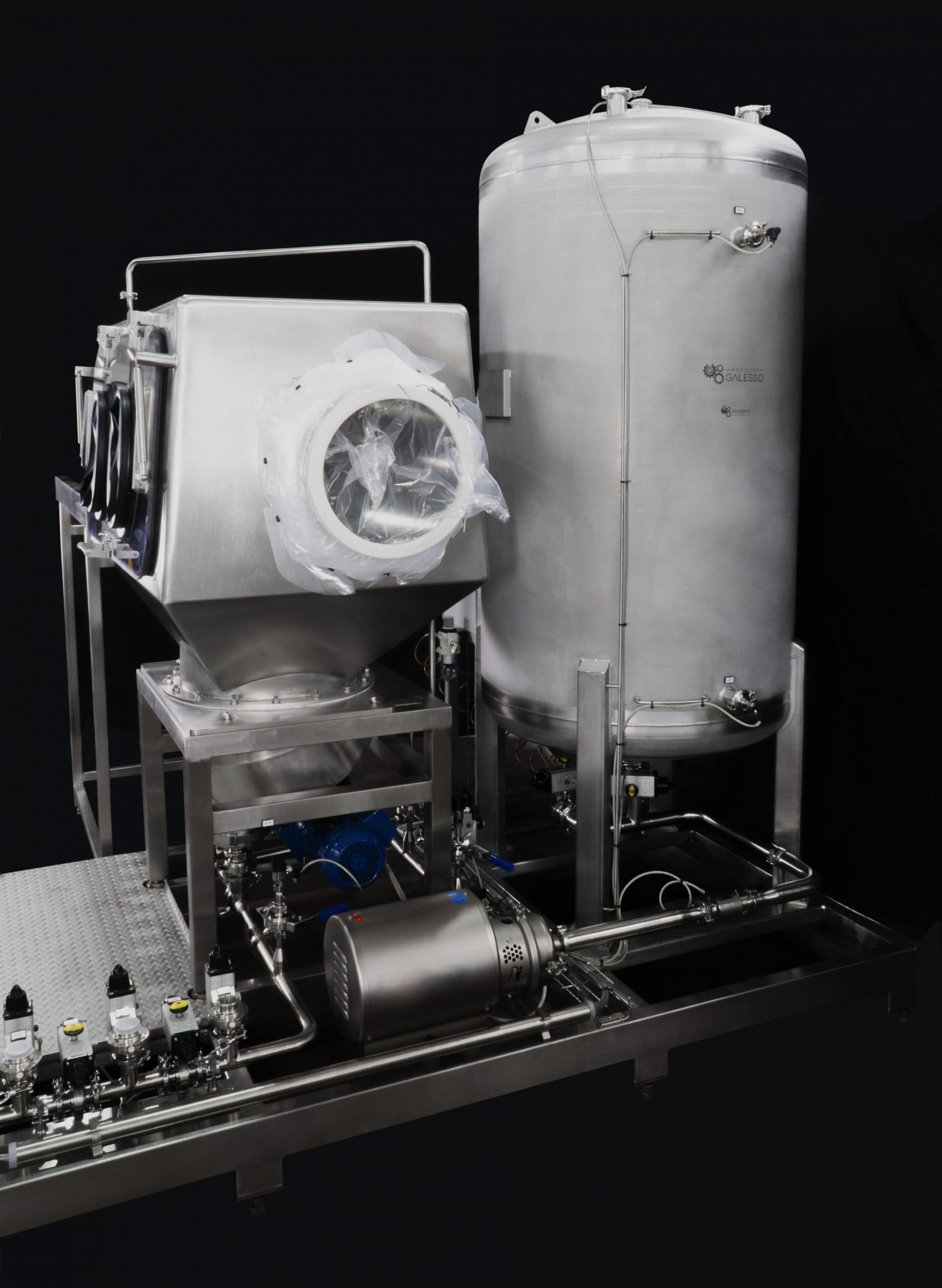

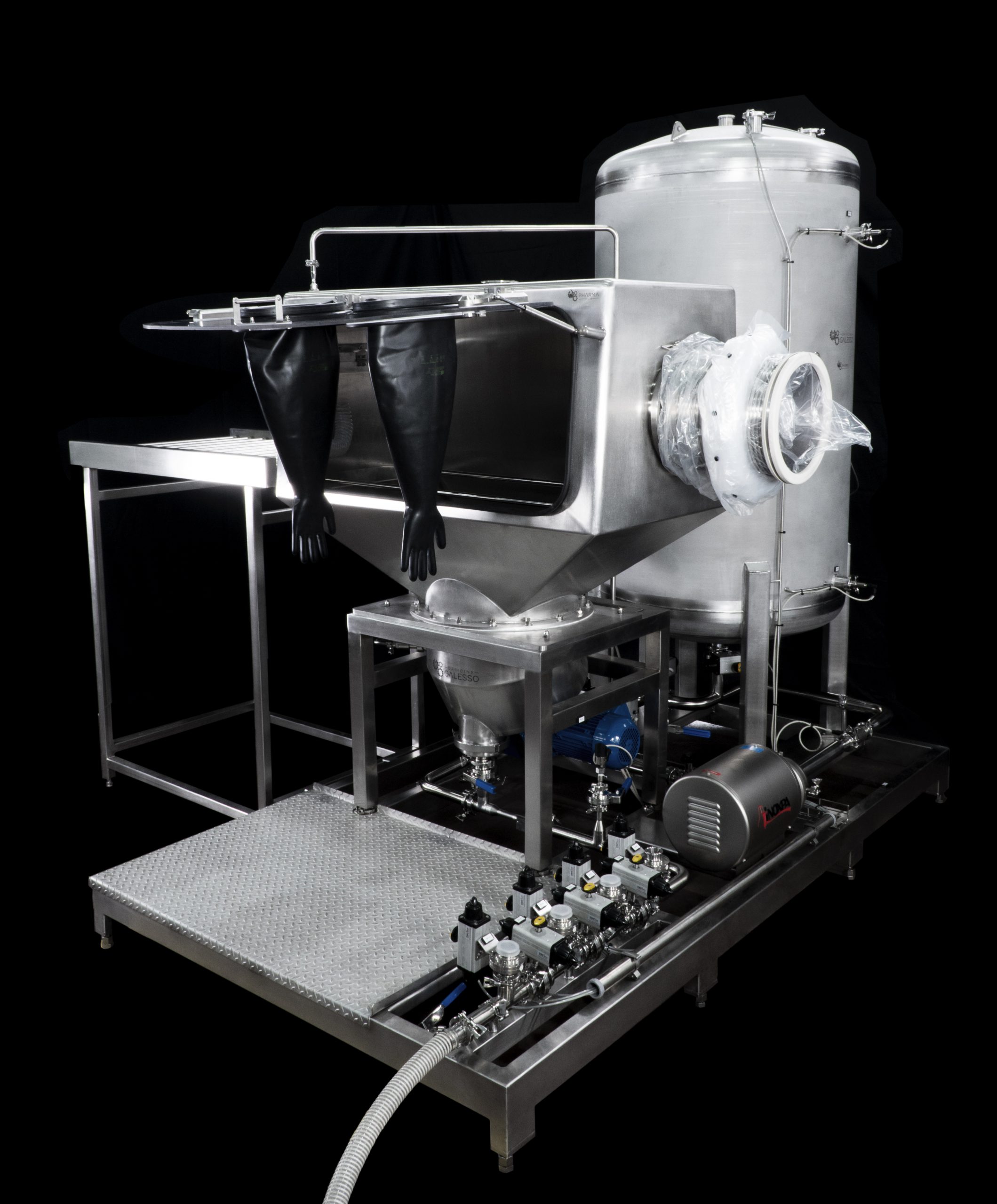

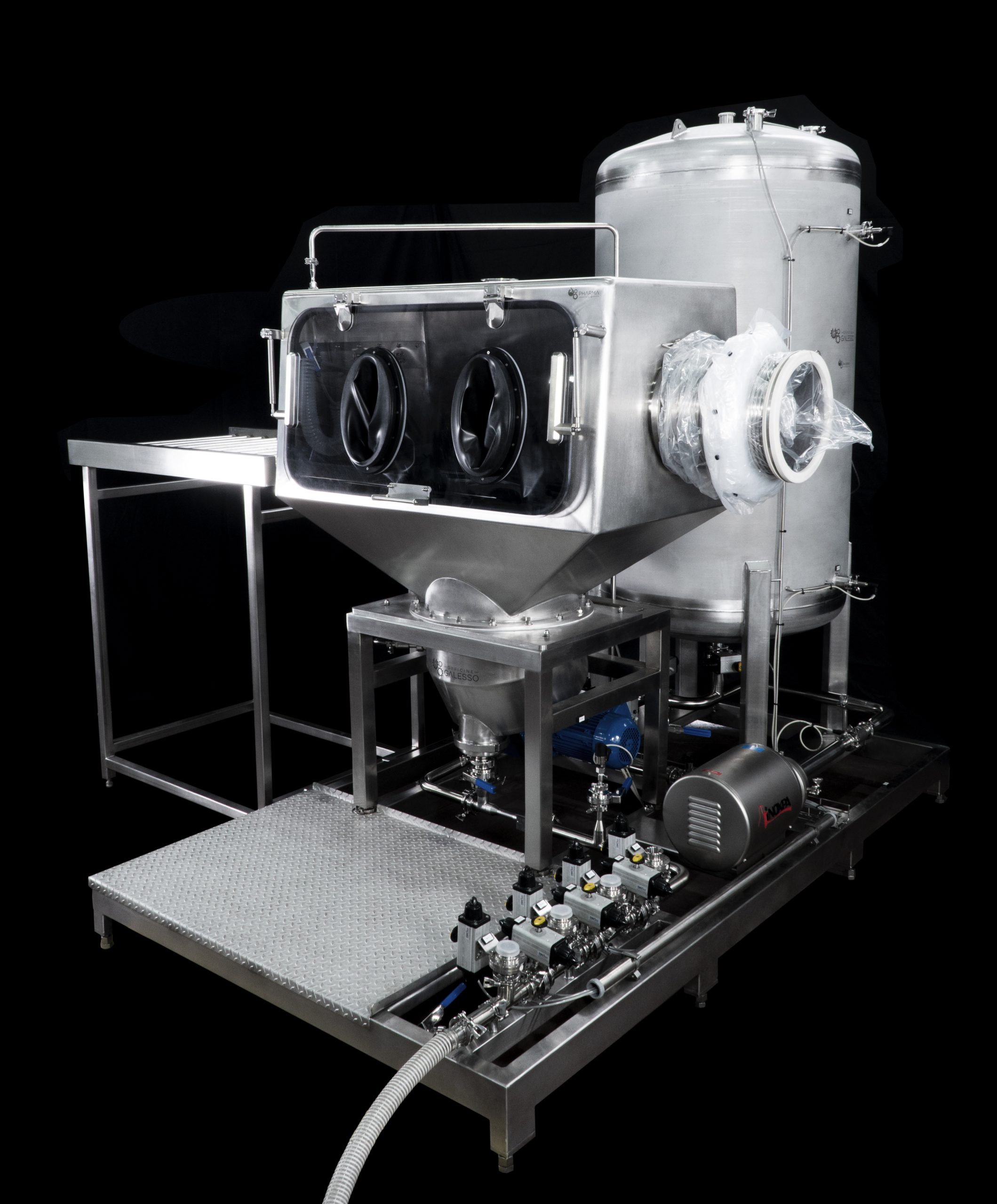

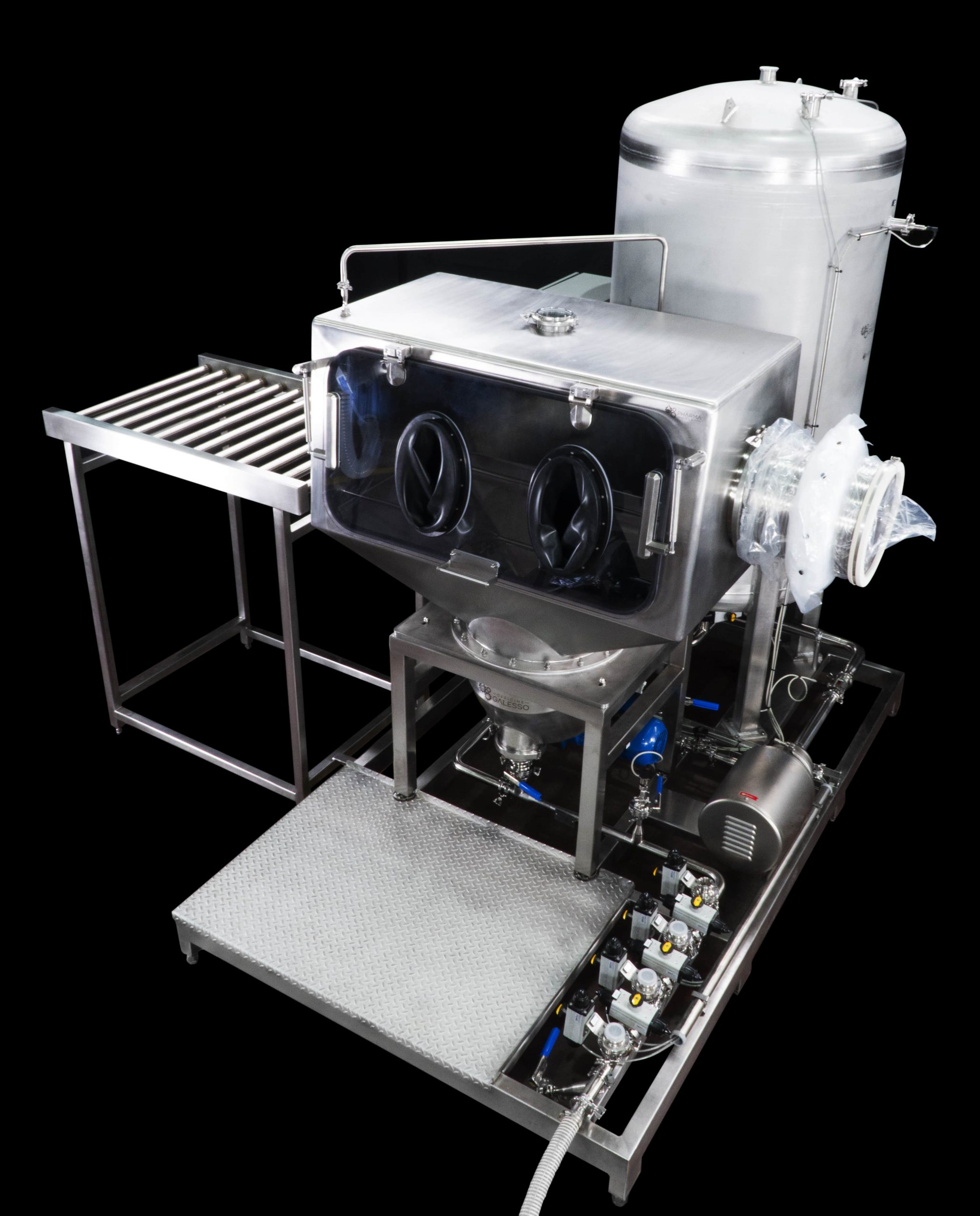

The hopper, can be equipped with either a glove box or a dust-free chamber, ensuring safer (HAPI) and cleaner operations in line with GMP standards. Additionally, the chamber, born from the CSV Containment expertise in the world of powder handling, the hopper, along with the buffer tank (made by Officine Galesso), incorporates Cleaning In Place (CIP) systems, fully complying with GMP cleaning and validation standards.

Hydro Powder System is not just a piece of machinery; it’s a gateway to more efficient, safer, and compliant pharmaceutical manufacturing processes. Bridging the gap between innovation and practicality, it offers an unparalleled solution in the realm of pharmaceutical production.

Flexible and Safe Top Chamber Options.

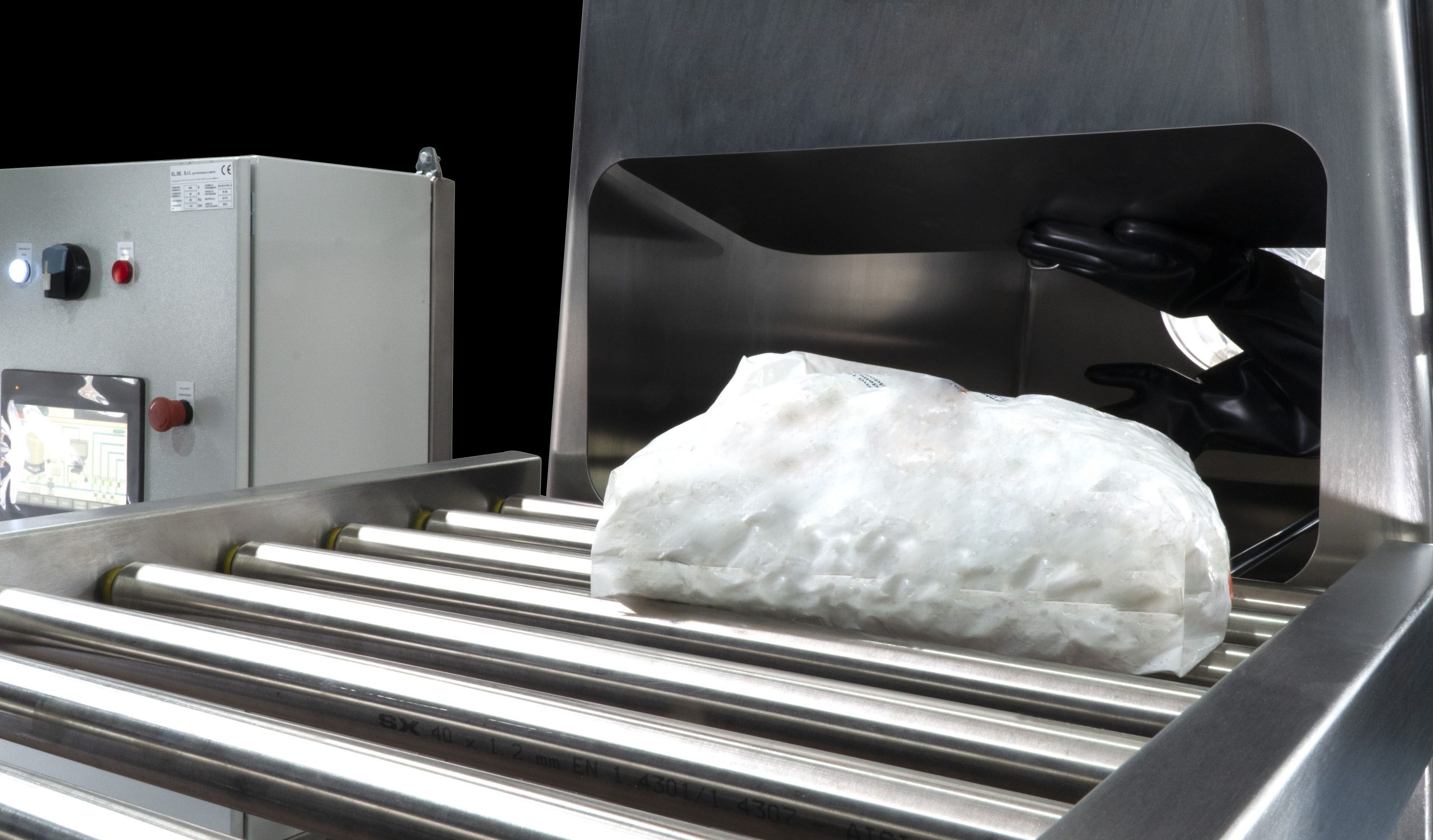

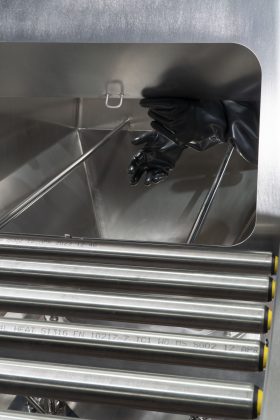

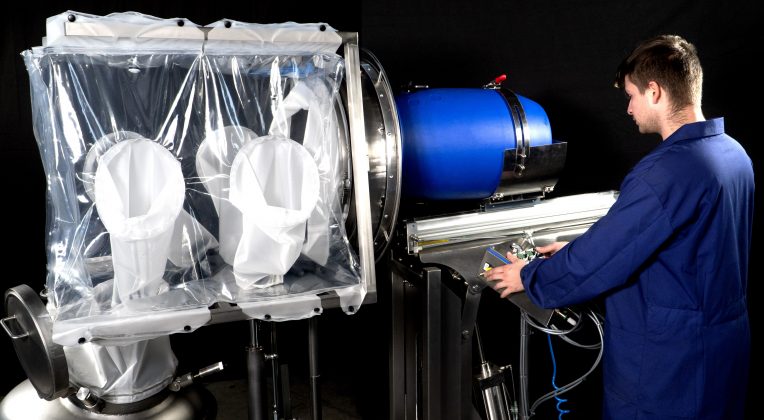

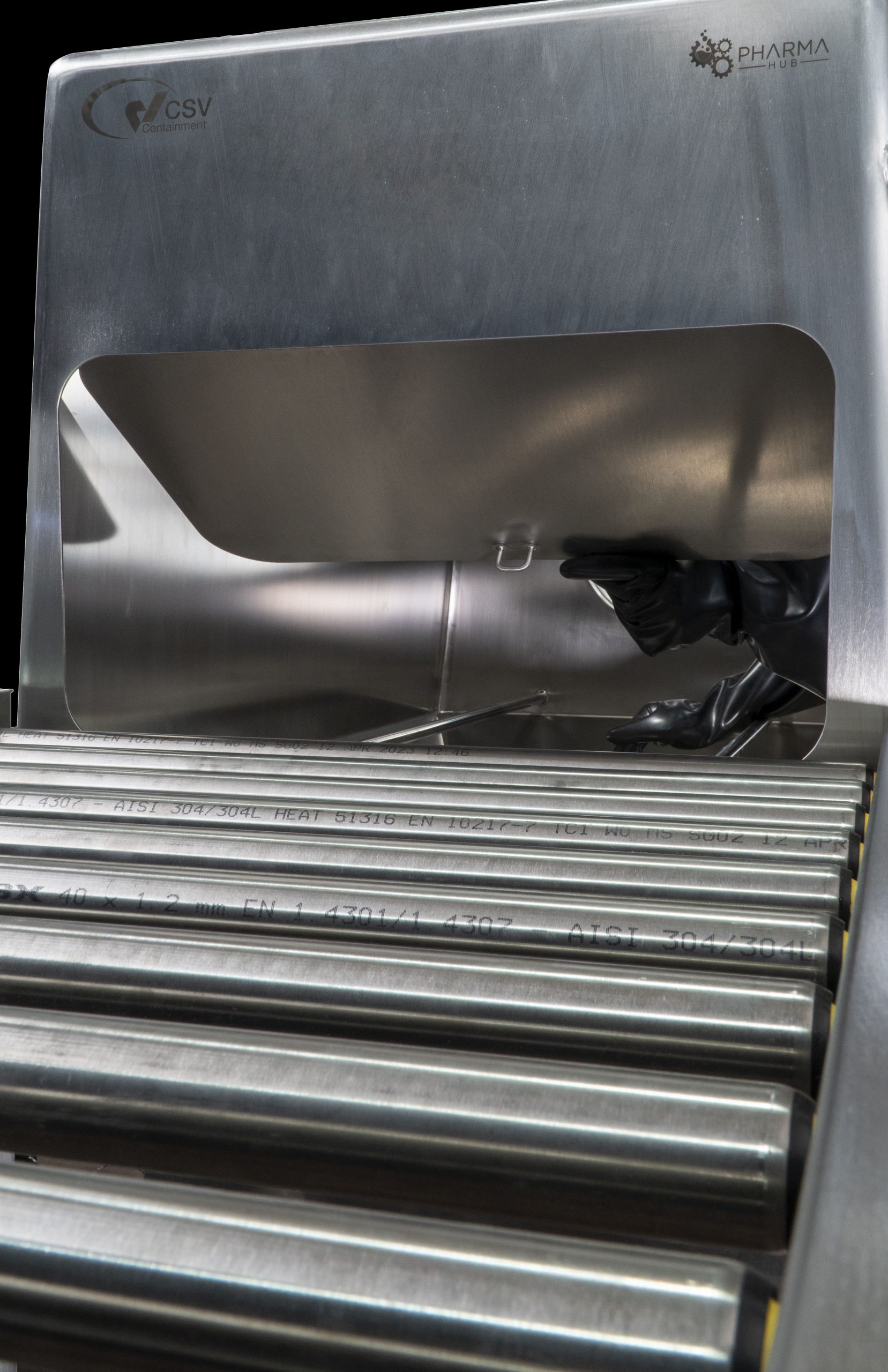

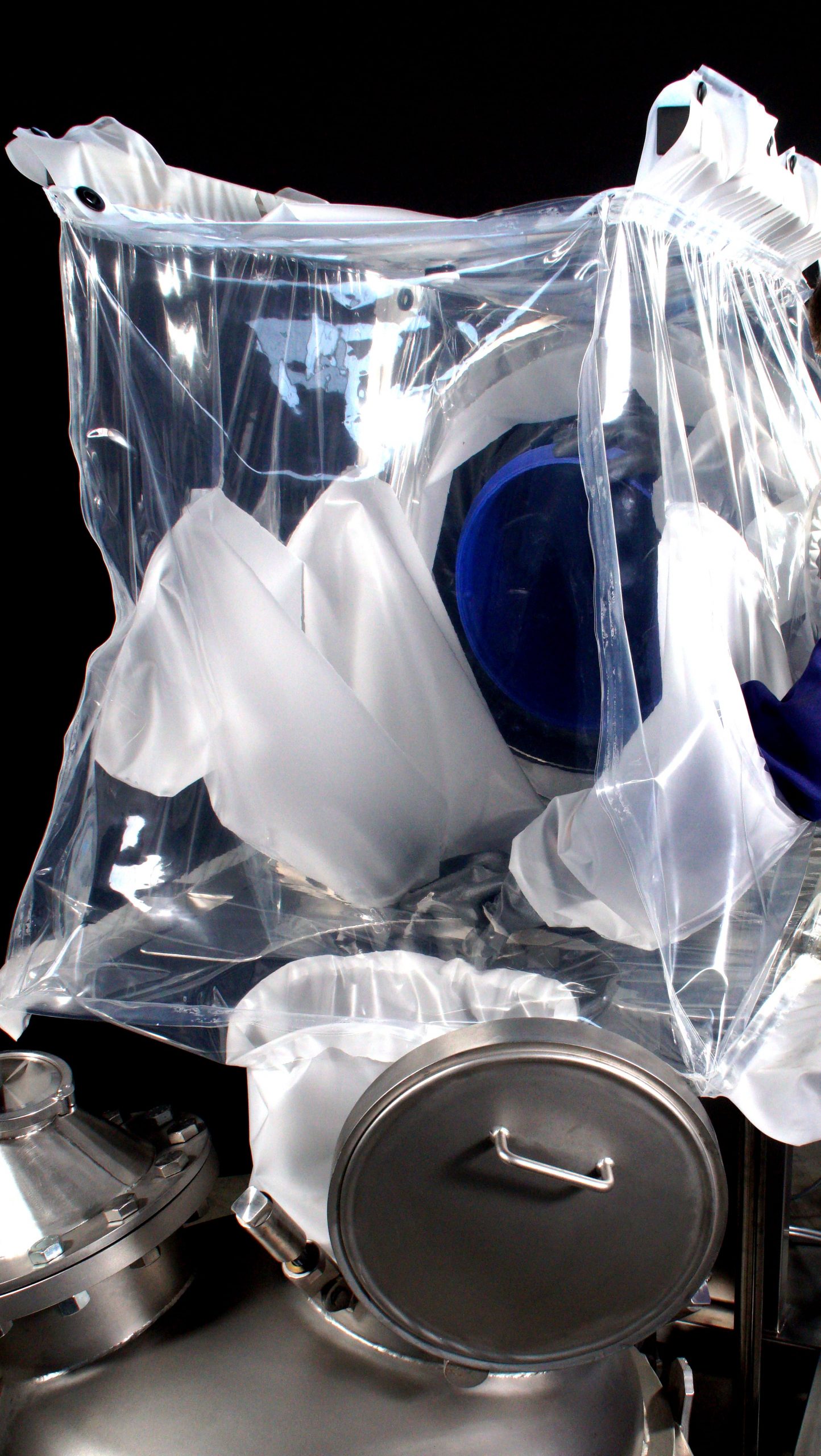

The top chamber material can be either robust steel or flexible, tailored to specific needs. The hopper offers flexible configurations. Options include a top chamber single or multiple interfaces for drum discharge, either a glove box or a dust free box, for safer (HAPI) and cleaner (GMP) applications, via Single or Double IRIS, Drums via Bag In Bag Out canisters, drum sleeves, or big bags as you can see in this photo gallery.

Efficiency and Versatility.

A robust pump propels the fluid to the Venturi device. This setup is adaptable, catering to various process requirements, whether it’s recirculation, direct transfer to the user point, or a mix of both, depending on the powder-to-liquid ratio.

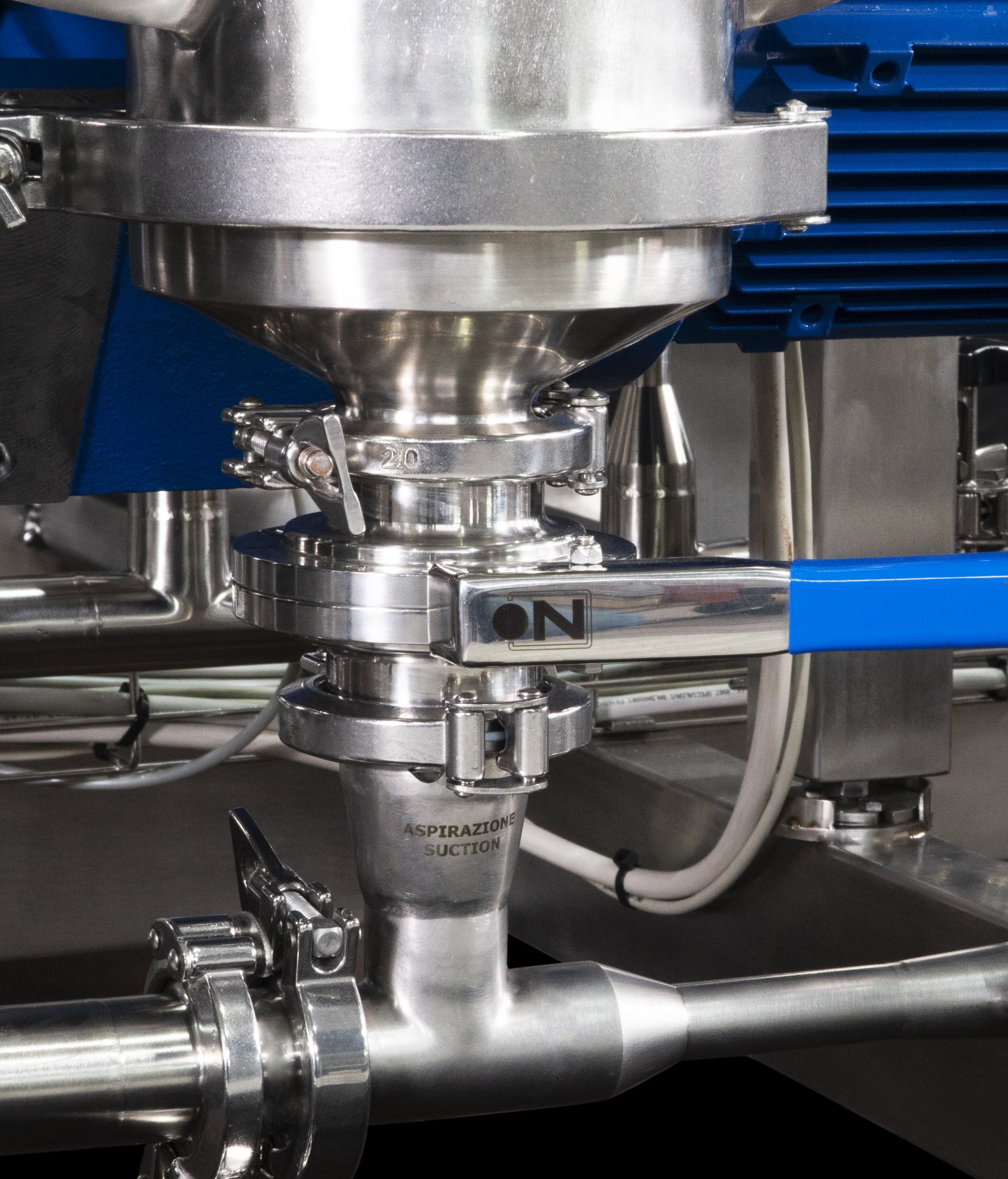

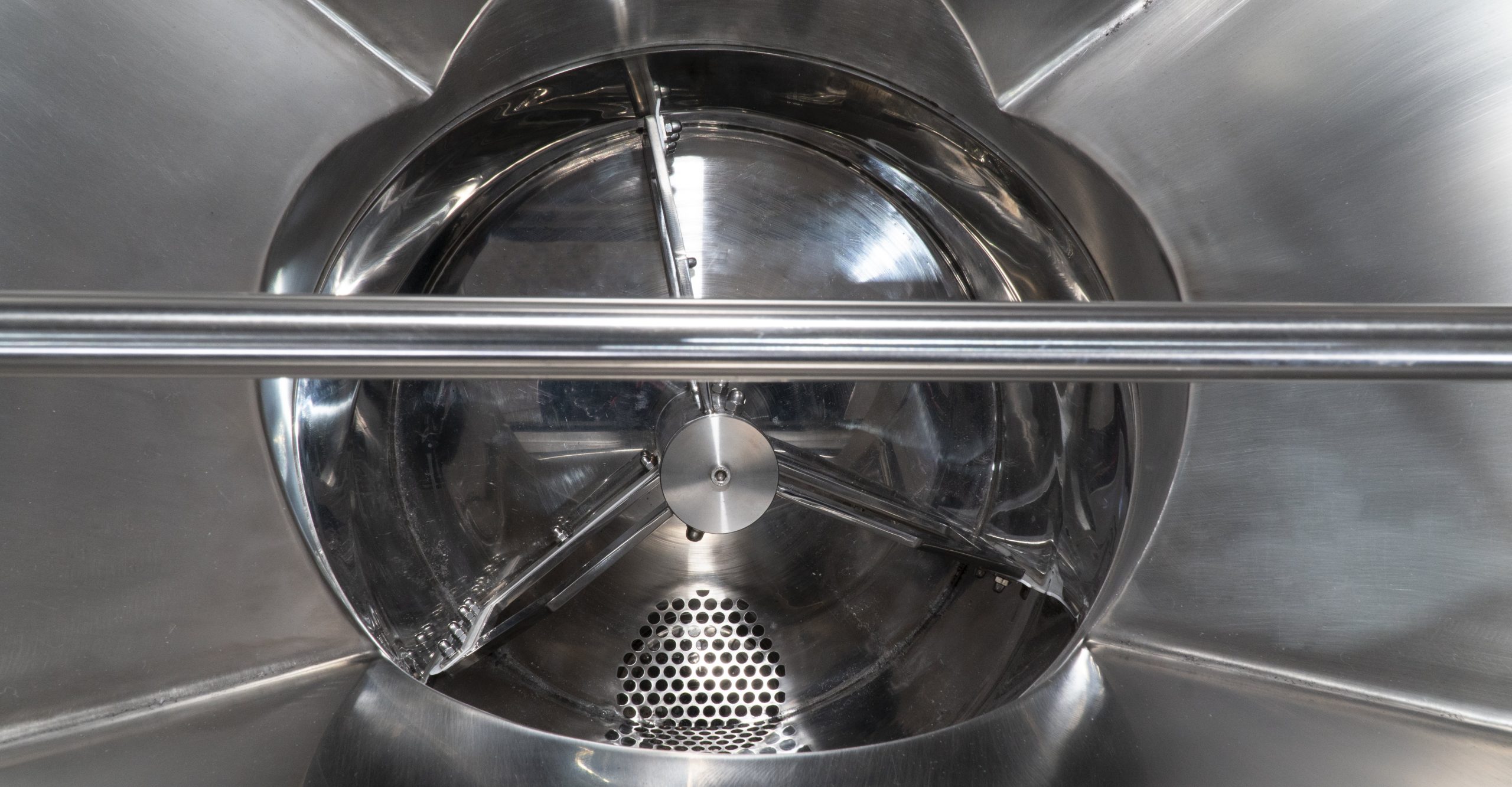

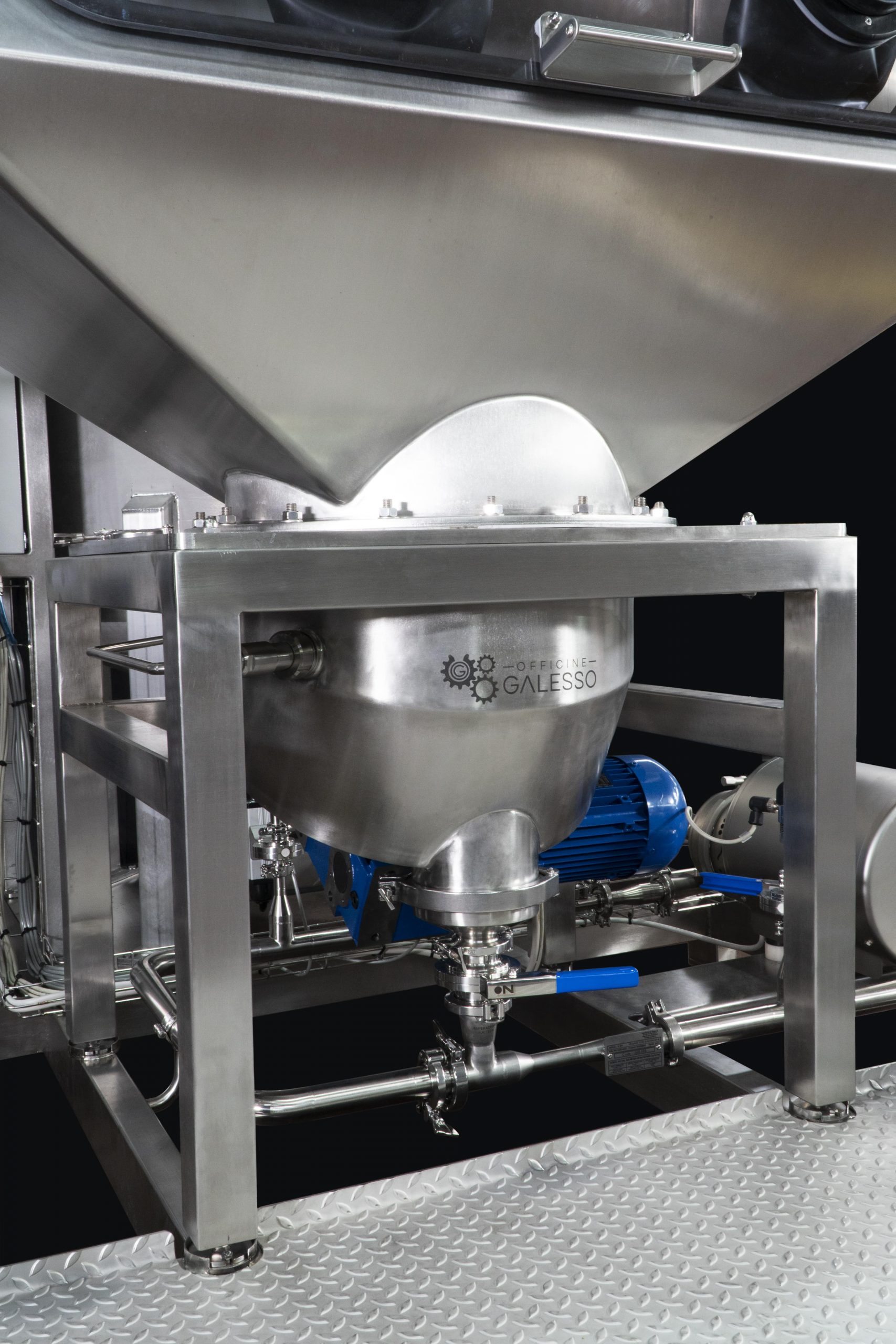

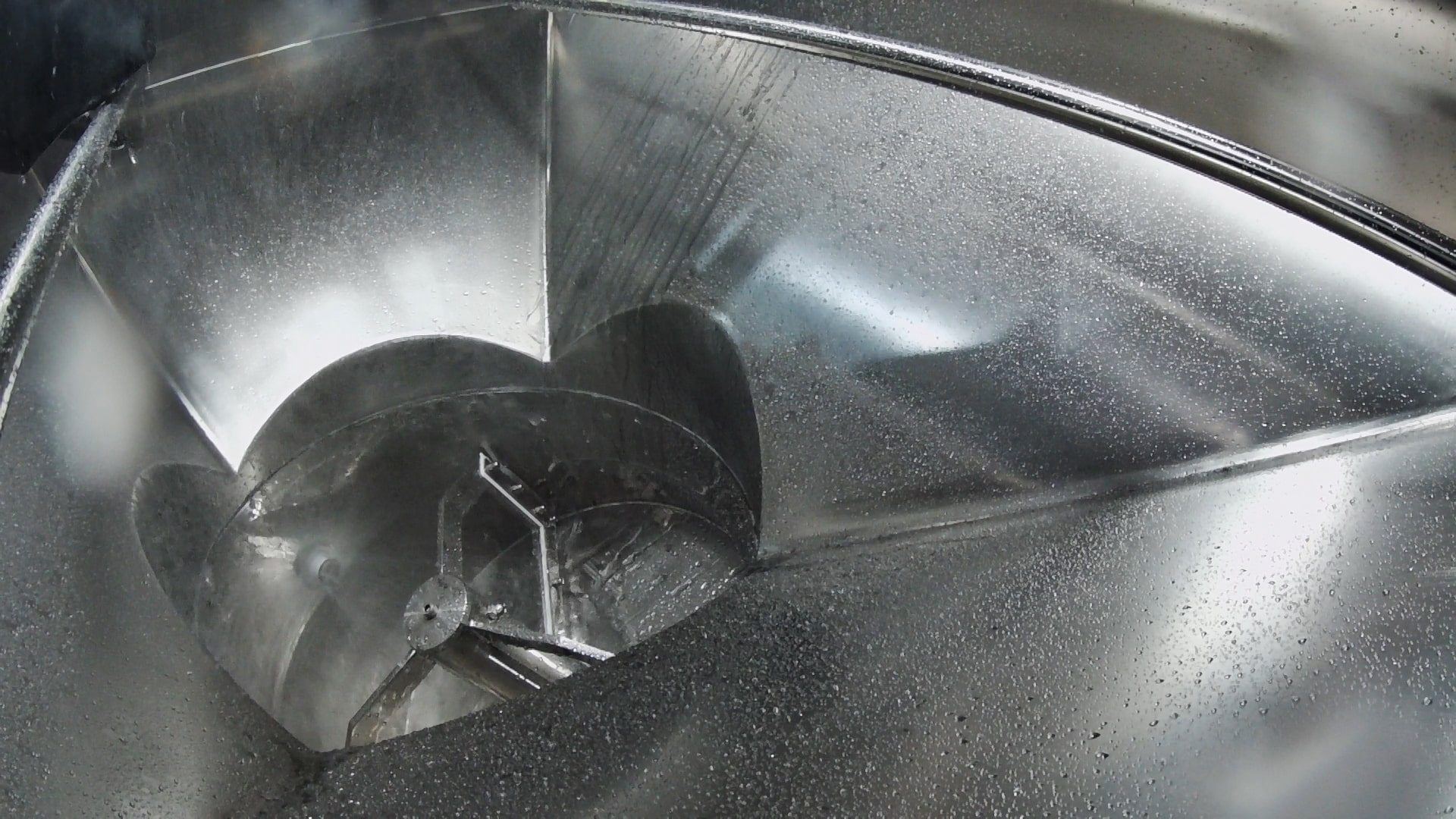

Our fluid Powder Transfer System is perfect for shear-sensitive products/materials, and its natural cooling effect during the process ensures product integrity. The hopper bottom design is projected for better material handling. It efficiently collects and channels dust to the suction area at the suction point; a rotary scraper, which can be configured as a lump breaker, effectively handles agglomerated materials.

Optimal Buffer System for Perfect Results.

The buffer system is ingeniously designed to:

  • Ensure the right quantity of liquid
  • Serve as a recirculation tank to achieve the desired dilution ratio
  • Together with the properly designed piping, to transfer the prepared solution, with the predefined quantity, to different user points

Advanced Control for Precision and Safety.

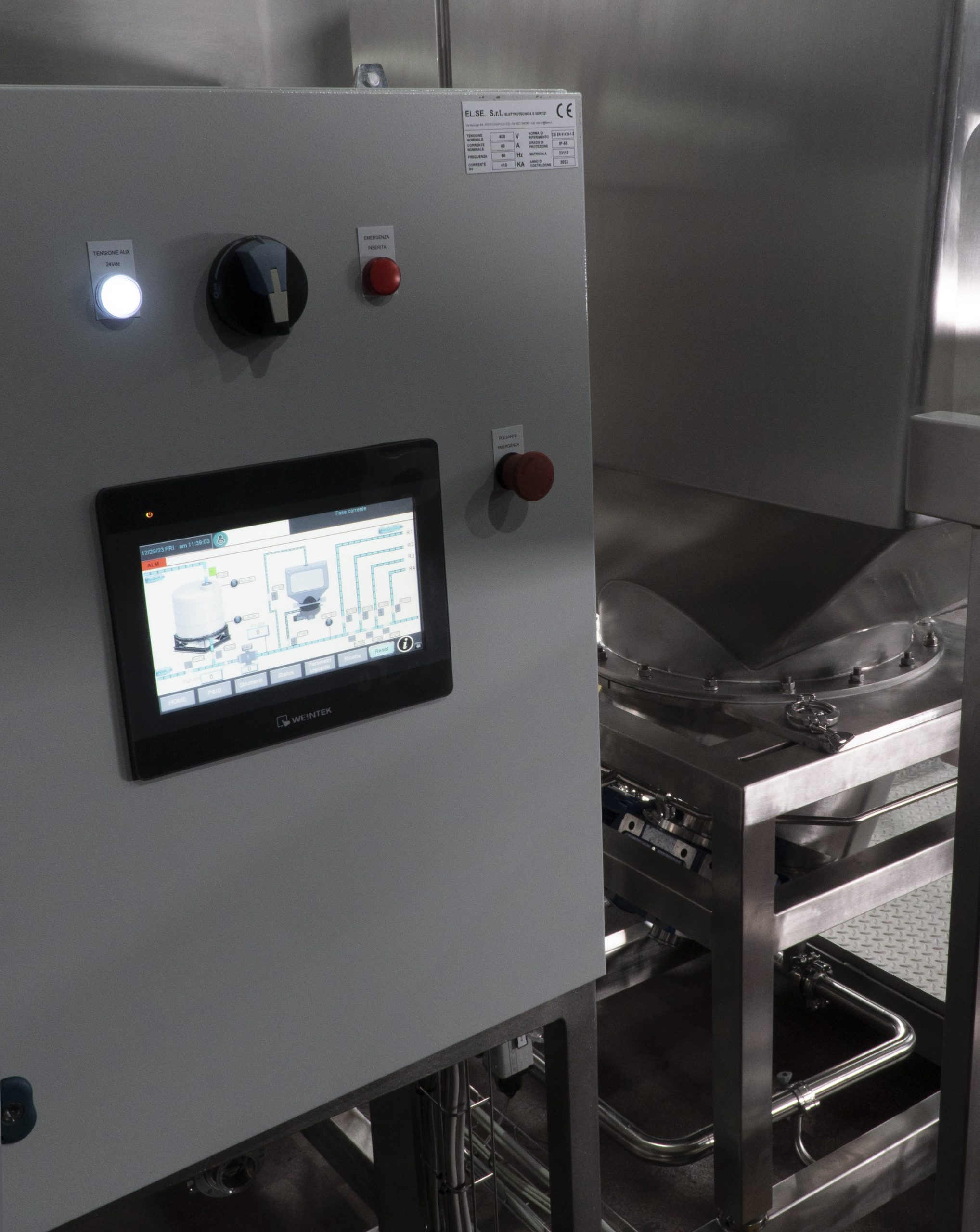

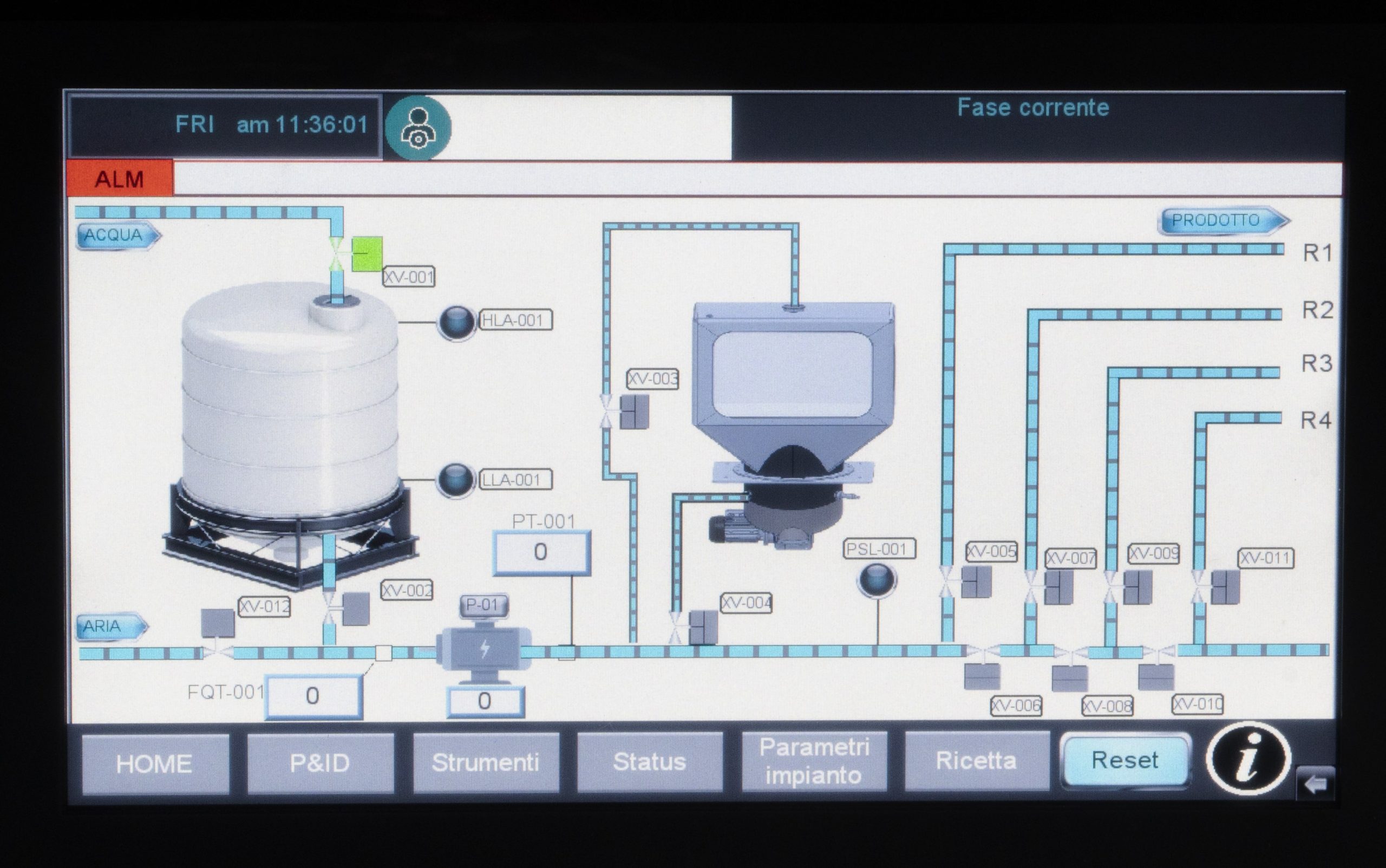

A control system (ATEX rated and CFR21 Part 11 compliant upon request) is handling automated process cycles with:

  • configurable parameters
  • flow rate control
  • timers
  • quantity and recipes management

CSV Containment provides tailor-made solutions for pharmaceutical and fine chemical sectors in terms of containment. For more info: containment@csv-ls.com
