Custom ATEX Pneumatic Drum Lifting Column for Automated High-Level Charging.
An ATEX pneumatic drum lifting column provides an effective solution for automated handling of heavy drums in potentially explosive environments. In pharmaceutical and chemical manufacturing, powder handling may require drums to be lifted several metres and precisely positioned above process equipment. Therefore, CSV Containment can engineer fully pneumatic, automated lifting columns designed for ATEX applications and tailored to the specific production layout.
Handling heavy drums becomes particularly challenging when the charging point is located on a mezzanine or at a significant height. In these applications, a conventional compact column lifter may not provide the required stroke or handling sequence.
For this reason, CSV Containment can design lifting columns capable of transferring drums from floor level to elevated charging points. In this specific example, the vertical travel can reach approximately 3.5 metres, depending on the process configuration.
Why Use a Fully Pneumatic Drum Lifting Column in ATEX Areas?
A fully pneumatic drum lifting column can be particularly suitable for ATEX applications because the handling movements can be performed without relying on electric drives at the point of operation. However, the complete system must always be designed and assessed according to the applicable ATEX requirements.
Moreover, the pneumatic concept is not limited to the vertical lifting movement. The handling sequence can integrate lifting, rotation and translation of the drum.

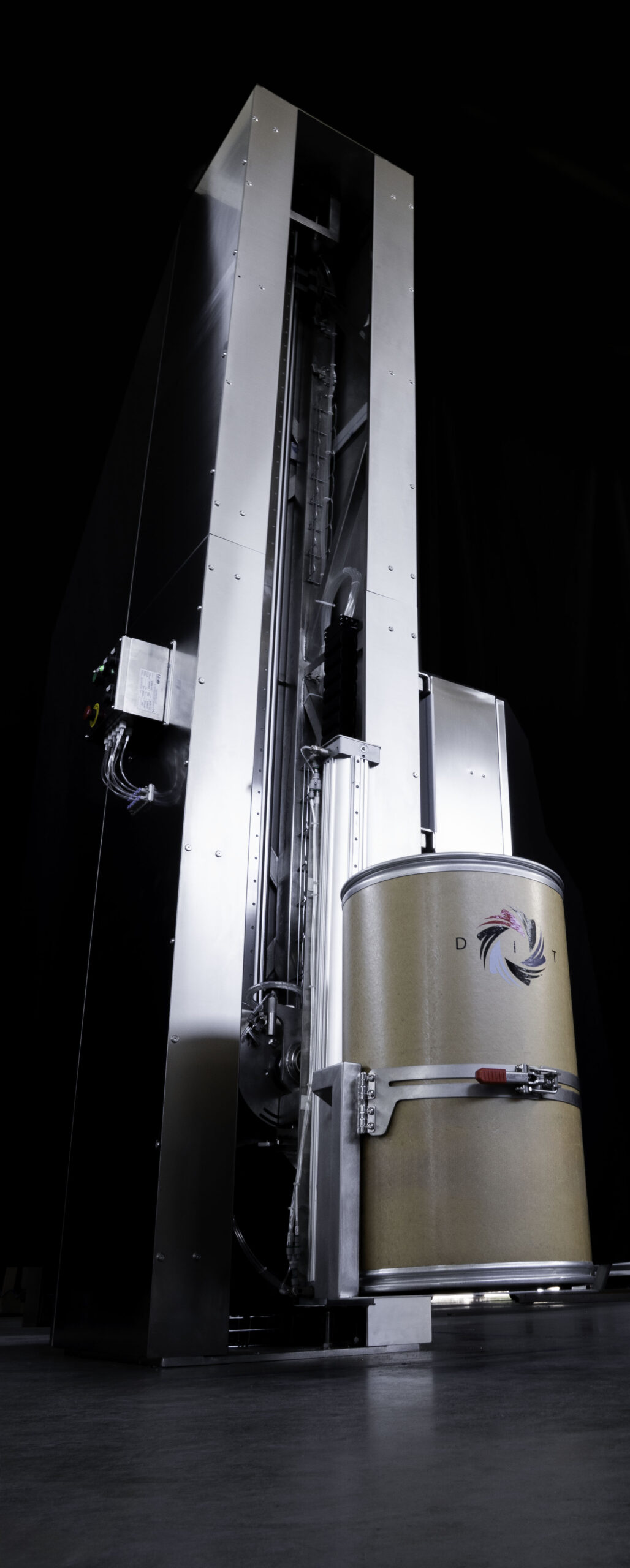

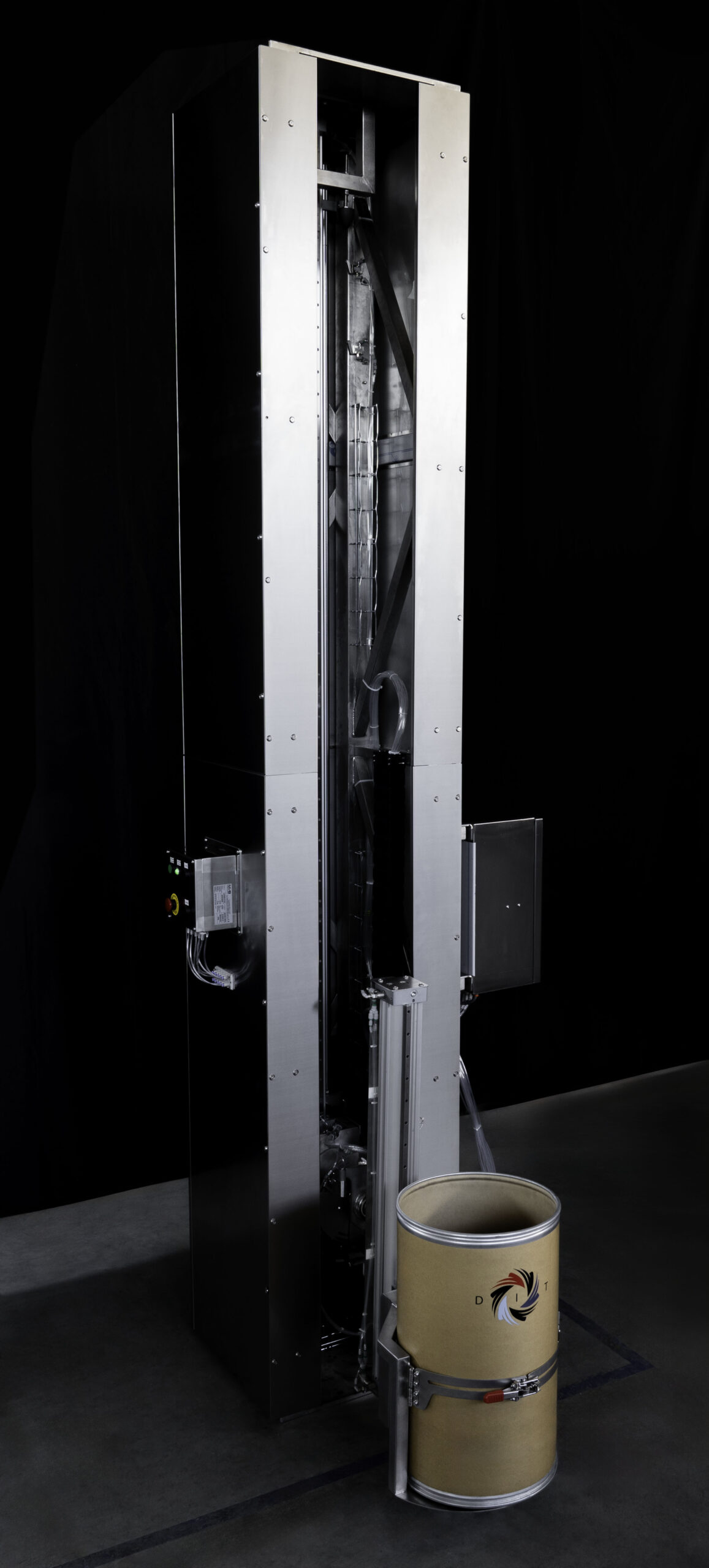

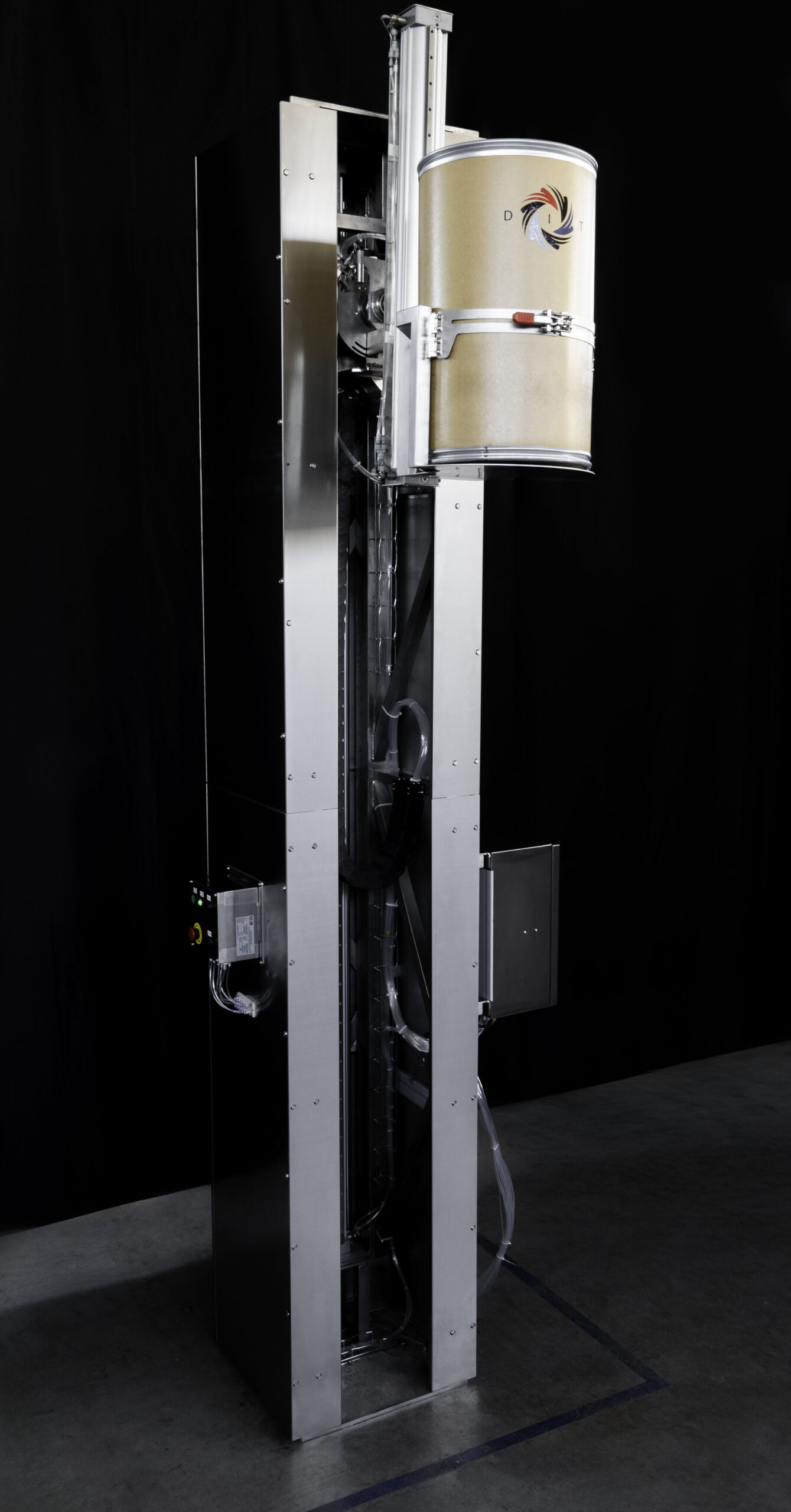

First, the operator places the closed drum on a dedicated steel saddle and secures it to the handling system. Then, once the cycle is initiated, the column automatically raises the drum to the required level.
How Does an Automated Drum Lifting Column Work?

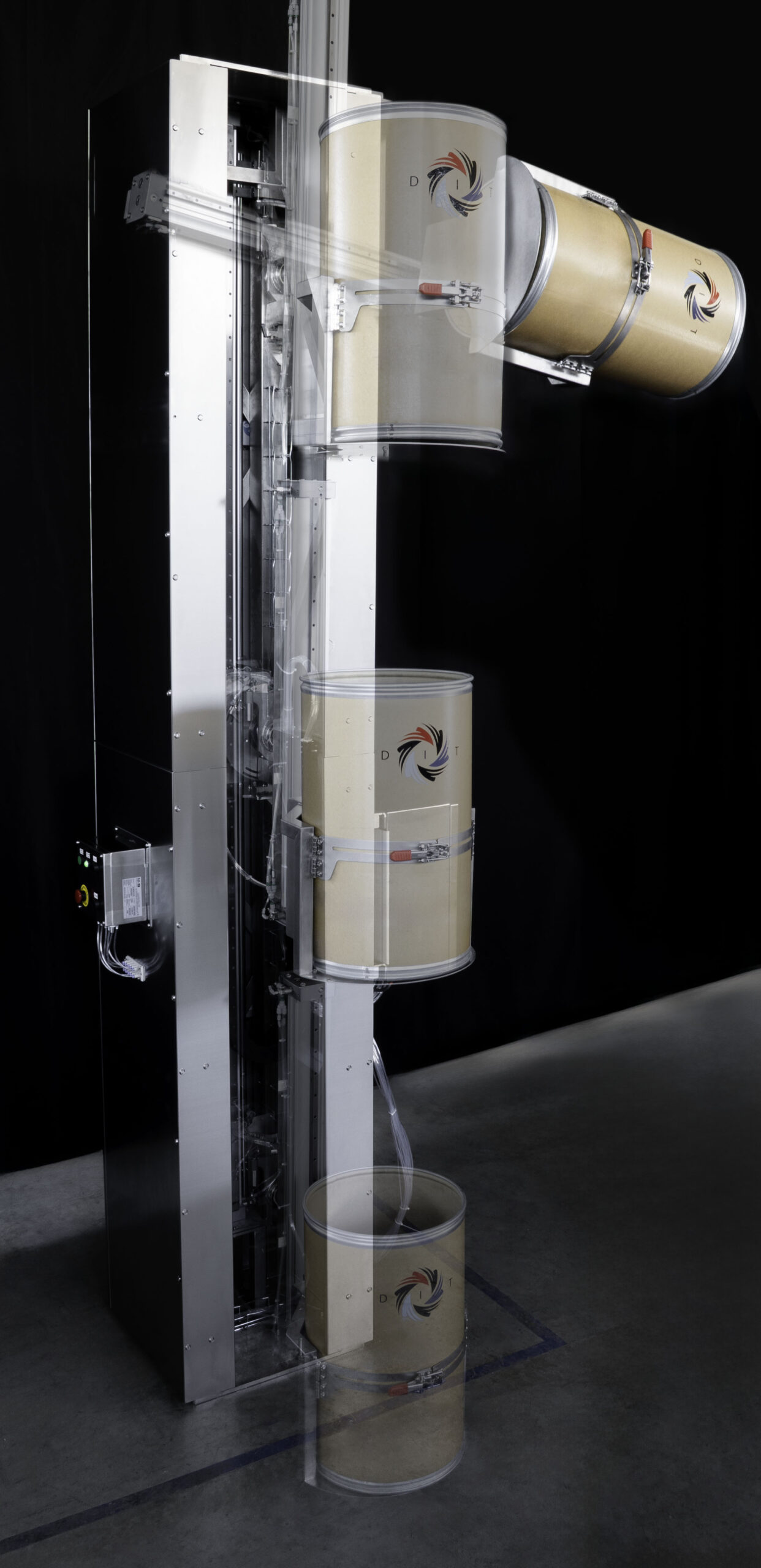

An automated drum lifting column can combine vertical lifting, drum rotation and horizontal translation within one controlled handling sequence.

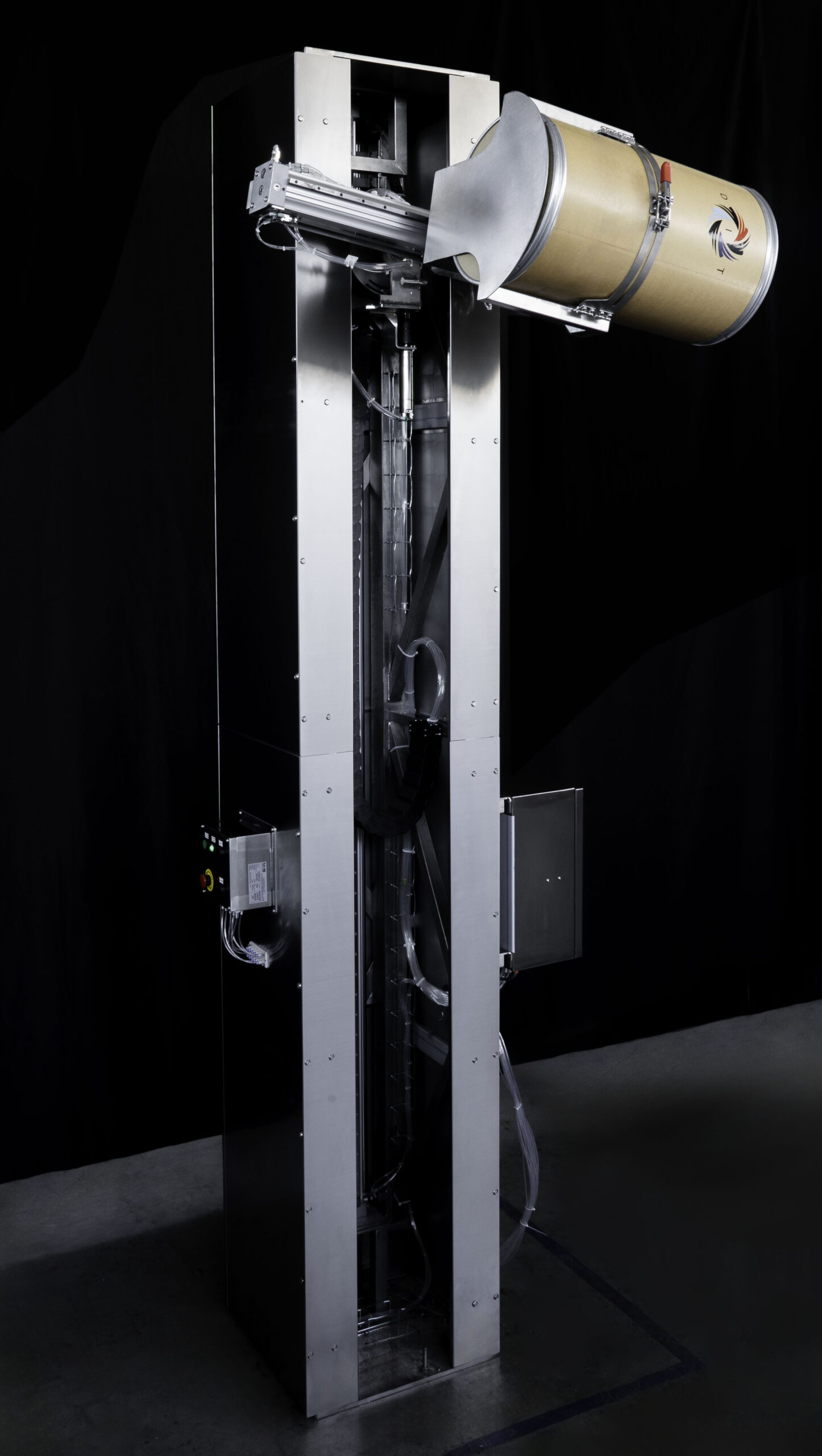

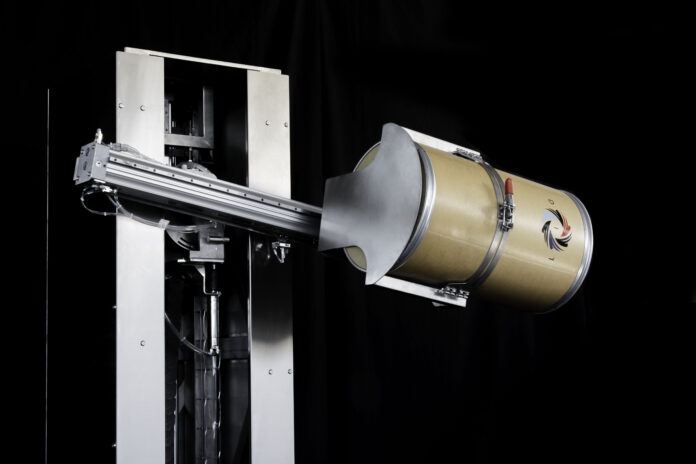

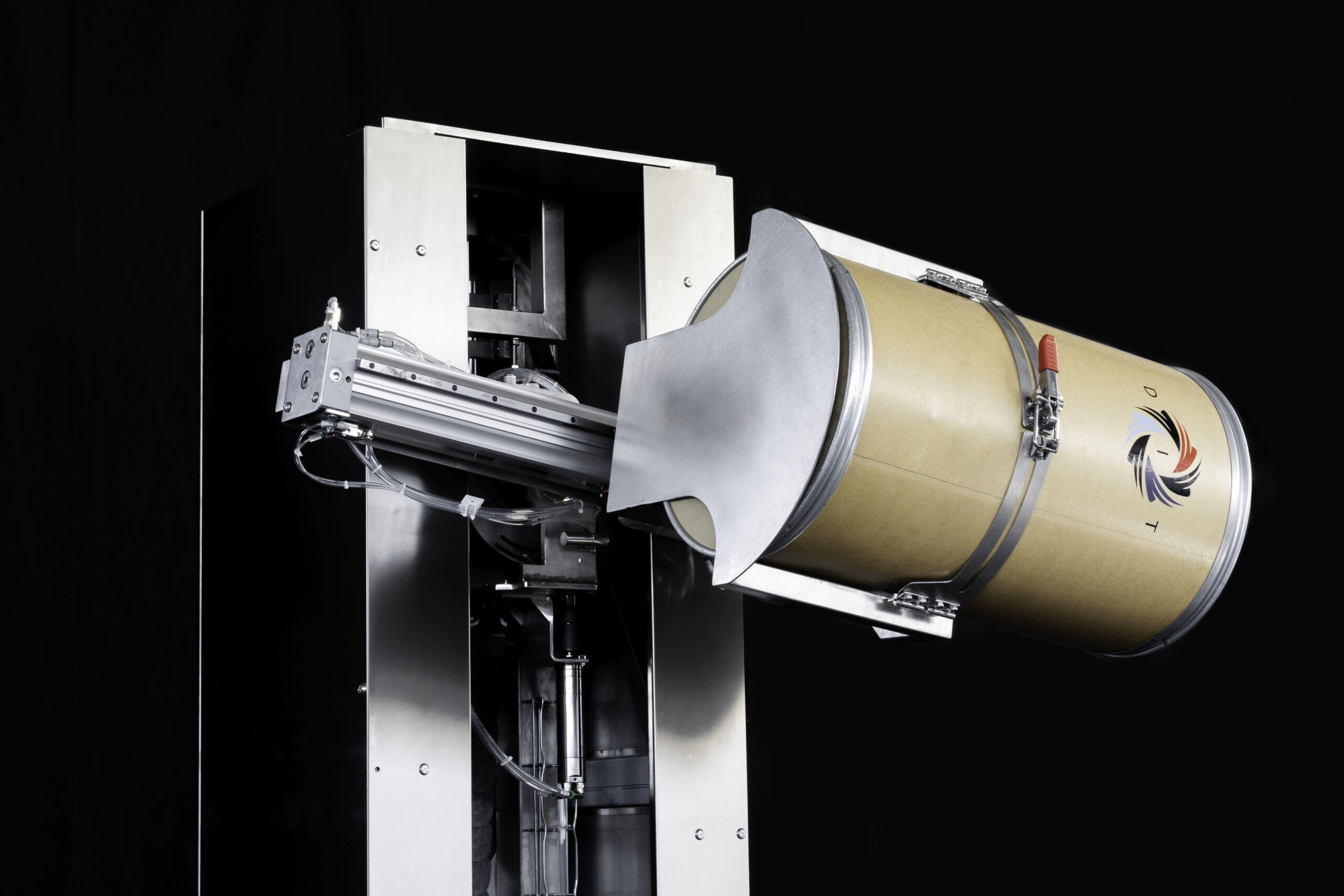

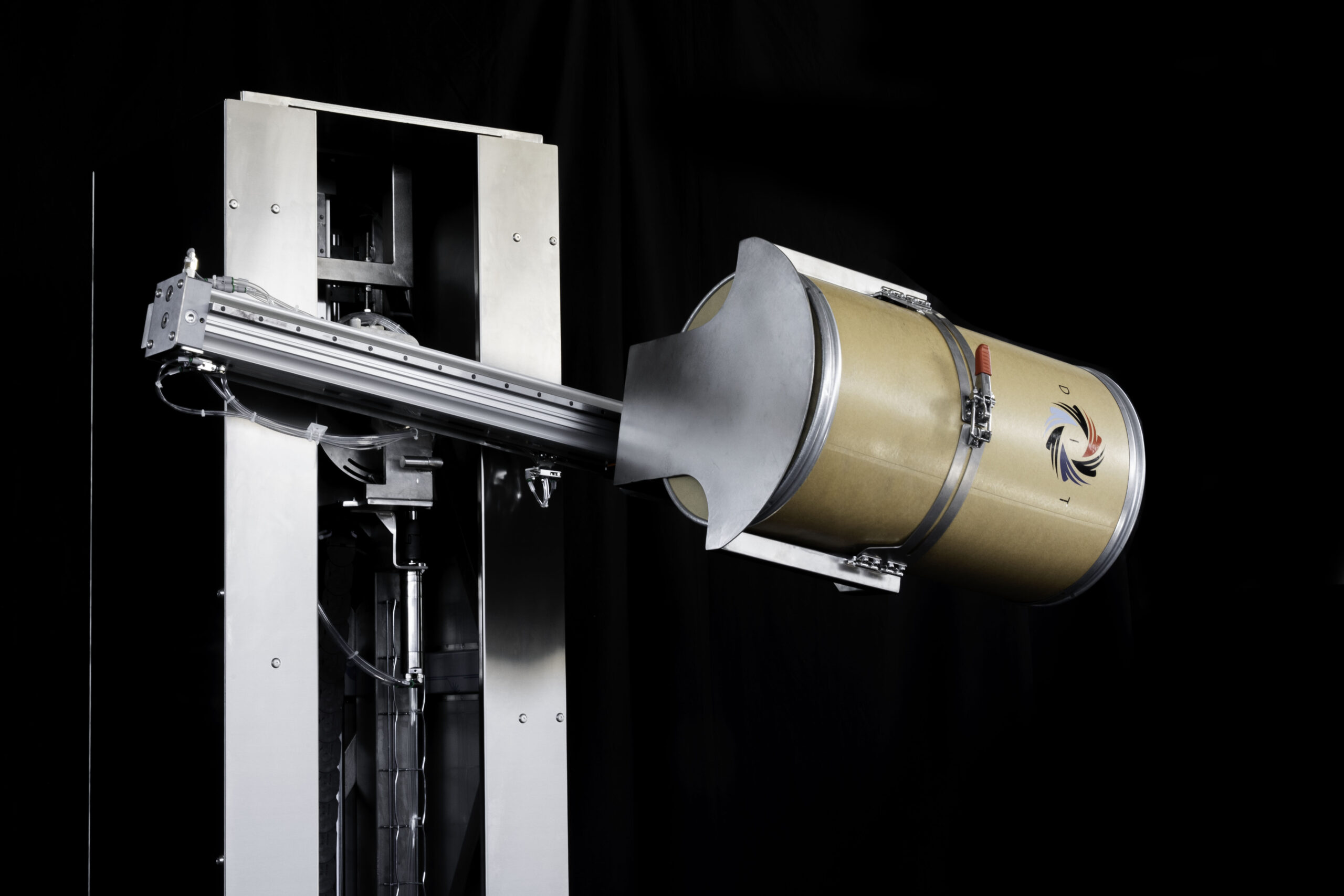

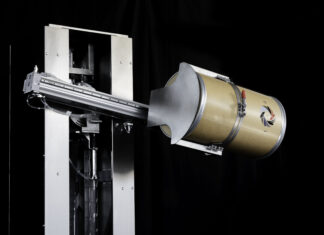

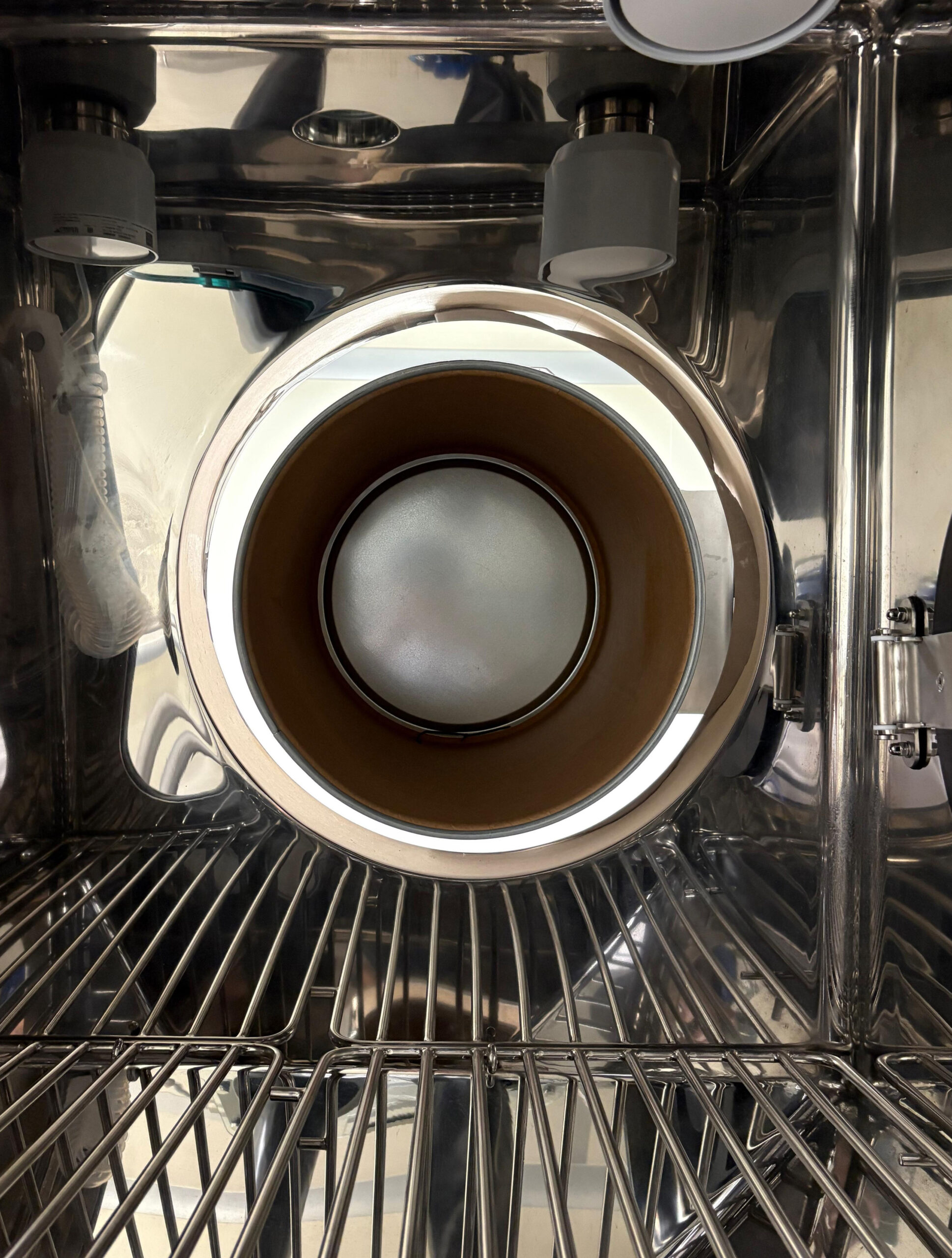

Once the correct height is reached, the drum is automatically rotated from the vertical position to the horizontal position. Afterwards, a pneumatic shuttle translates it towards the process interface.
Consequently, a heavy container can be moved through different axes without requiring the operator to manually handle it at height. At the same time, controlled movements allow accurate and repeatable positioning at the final docking point.
How Can Heavy Drums Be Lifted to an Elevated Charging Point?
Heavy drums can be transferred to elevated charging points using an automated lifting column specifically designed for the required height, load and process configuration.

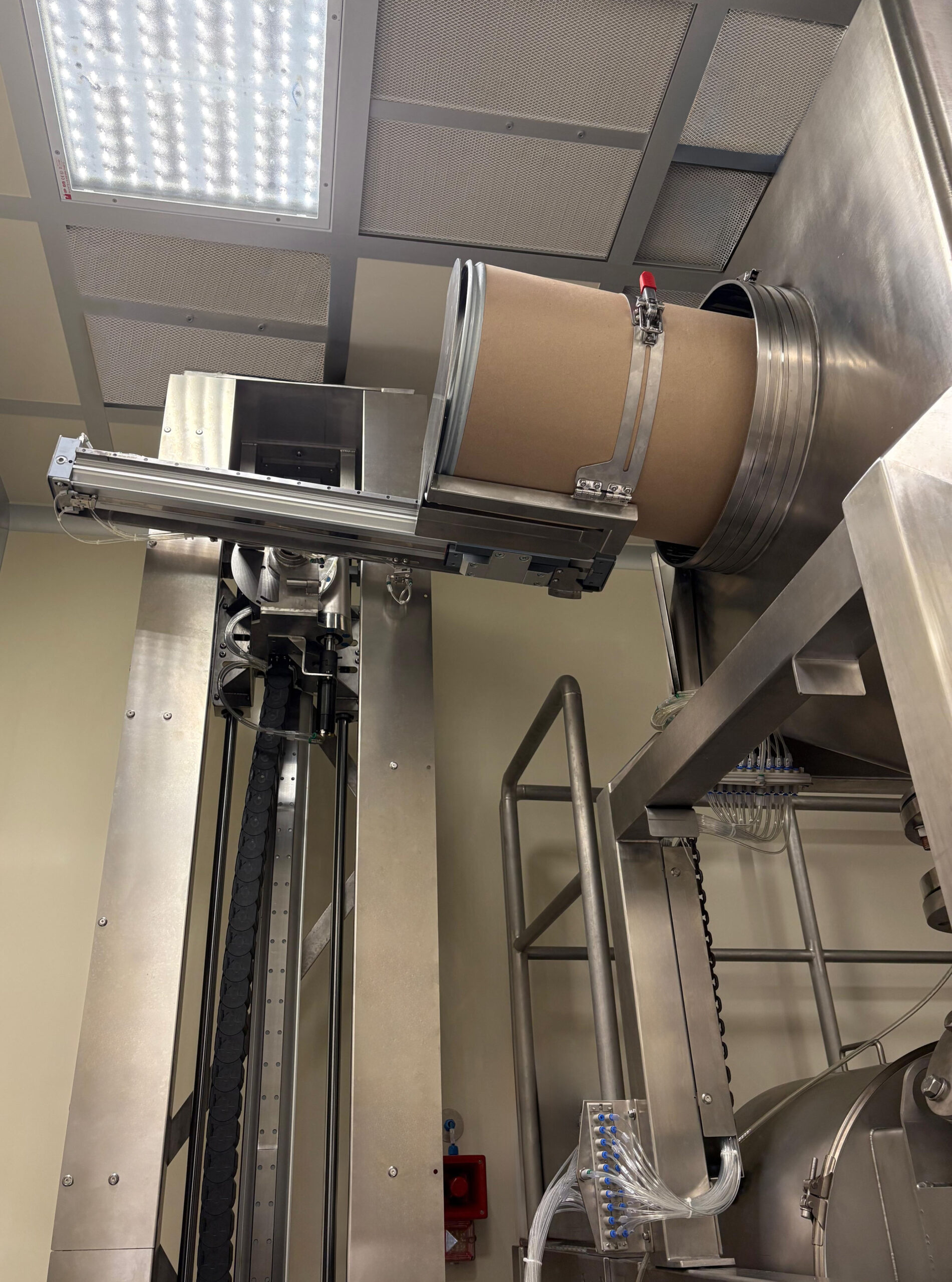

This approach is particularly useful when production equipment is installed on a mezzanine or when the charging interface is several metres above floor level. Therefore, the drum can start its journey at an accessible loading position and reach the required process height through an automated sequence.
Custom ATEX Pneumatic Drum Lifting Column Engineering.
ATEX applications require careful evaluation of both the equipment and the environment where it will operate. Furthermore, each installation presents different constraints in terms of drum size, weight, lifting height, available space and final interface.
Therefore, CSV Containment develops these systems as custom-engineered solutions. The column stroke, drum saddle, clamping system, pneumatic actuators, rotation mechanism and horizontal transfer can be configured around the customer’s process.
When Is a Custom Drum Lifting Column Required?
A custom drum lifting column is particularly valuable when standard handling equipment cannot meet specific requirements for load, height, movement or integration with existing process equipment.
For this reason, CSV Containment’s engineering approach goes beyond the vertical movement itself. Instead, the complete drum journey can be considered, from loading at floor level to positioning at the elevated charging point.
As a result, CSV Containment can develop an automated ATEX pneumatic drum lifting column and universal lifter for applications where heavy drums, significant lifting heights and hazardous-area requirements demand a highly customized solution.
CSV Containment provides tailor-made solutions for pharmaceutical and fine chemical sectors in terms of containment. For more info: containment@csv-ls.com
